B3F-5000

B3F-5000, Omron Electronics, mechanical key switch, DIP, 24 Volts, 1 Form A, 130g

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.93 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.13~0.93

PartNumber:: B3F-5000

Brand:: Omron Electronics LLC - OMRON | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. loby chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-21

From Other Seller

Part Number:B3F-5000
US $0.13 - 0.93
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

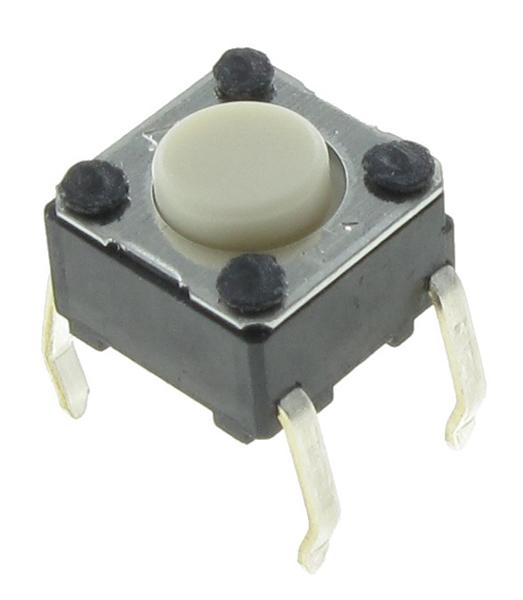

The B3F-5000 is a mechanical key switch from Omron. There are many kinds of models such as 6 x 6 mm, 12 x 12 mm, Vertical and High-force. It is featured with excellent tactile feel combined with high life expectancy and pushbuttons available in nine colors. The B3F-5000 is available in stick packaging for automatic mounting to PCBs.

Parametrics

B3F-5000 absolute maximum ratings: (1)Operating Force:130 g; (2)Actuator: Rectangular; (3)Current Rating (Max): 50mAmps; (4)Voltage Rating DC: 24 Volts; (5)Ground Terminal: Yes ; (6)Contact Form: 1 Form A (SPST-NO); (7)Termination Style: Solder Pin; (8)Mounting Direction: Straight; (9)Illumination: Not Illuminated; (10)Body Size: 12 mm L x 12 mm W x 3.5 mm H; (11)Packaging: Bulk; (12)Contact Rating: 1mAmp to 50mAmps at 5 Volts to 24 Volts; (13)Features: Miniature space saving switch, positive click action plus long life equal to no-contact switch; (14)Mounting Style: Through Hole; (15)Operating Temperature Range: - 25 ℃ to + 70 ℃; (16)Series: B3; (17) Standard Pack Qty: 100.

Features

B3F-5000 features:(1)A Wide Range of Models: 6 x 6 mm, 12 x 12 mm, Vertical and High-force; (2)Excellent tactile feel combined with high life expectancy; (3)Available in stick packaging for automatic mounting to PCBs; (4)Up to 2.55 N (260-gf) operating force for a firmer operating touch; (5)Pushbuttons available in nine colors.
