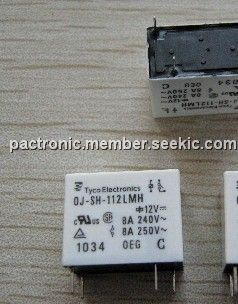

The OJ-SH-112LMH is a Miniature PCB Relay. The applications of the OJ-SH-112LMH include appliances, HVAC, industrial control.
Parametrics
OJ-SH-112LMH absolute maximum ratings: (1) Contact arrangement: 1 form A, 1 NO; (2) Rated voltage: 30VDC, 250VAC; (3) Max. Switching voltage: 30VDC, 277VAC; (4) Rated current: 3A to 10A; (5) Contact material: Ag, AgSnO, AgCdO; (6) Min. recommended contact load: 100mA, 5VDC; (7) Frequency of operation: 360 ops./h; (8)Operate time max. OJ/OJE-L: 15ms; (9) Release time max.: 4ms; (10) Voltage: 5V to 48V; (11) Nominal Power: 200mW; (12) Voltage: 5V to 48V; (13) Max. Coil Power: 130% of nominal.
Features
OJ-SH-112LMH features: (1)Miniature size 18.2×10.2×14.7h; (2)1 Form A (SPST-NO) contact arrangement; (3)Designed to meet UL, CSA, VDE, TUV requirements; (4)Designed to meet 4kV dielectric between coil and contacts (OJ); (5)Sensitive and standard coils available; (6)Immersion cleanable, sealed version available.
Diagrams
 |
 OJ-SH-105HM,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 10A 5VDC SEALD MINI PCB RELAY |
Data Sheet |
|
|
||||||||||||
|
OJ-SH-105HM,095 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 10A 5VDC SLD |
Data Sheet |
Negotiable |
|
||||||||||||
|
OJ-SH-112DM,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 5A 12VDC SLD |
Data Sheet |
Negotiable |
|
||||||||||||
|
OJ-SH-112HM,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays Relays |
Data Sheet |
|
|
||||||||||||
|
OJ-SH-112LM,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 3A 12VDC SLD |
Data Sheet |
|
|
||||||||||||
|
OJ-SH-124LM,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 3A 24VDC SLD |
Data Sheet |
Negotiable |
|
||||||||||||
