Product Summary

The AGN20024 is an ULTRA-SMALL PACKAGE SLIM POLARIZED RELAY.

Parametrics

AGN20024 absolute maximum ratings: (1)Arrangement: 2 Form C; (2)Initial contact resistance, max. (By voltage drop 6 V DC 1A ): 100 mΩ; (3)Contact material Stationary: AgPd+Au clad Movable: AgPd; (4)Rating Nominal switching capacityn (resistive load): 1 A 30 V DC; 0.3 A 125 V AC; Max. switching power (resistive load): 30 W, 37.5 V; Max. switching voltage: 110 V DC, 125 V AC; Max. switching current: 1 A; (5)Nominal operating power, Single side stable: 140mW (1.5 to 12 V DC); 230mW (24 V DC); 1 coil latching: 100mW (1.5 to 12 V DC); 120mW (24 V DC).

Features

AGN20024 features: (1)Compact slim body saves space; (2)Outstanding surge resistance.; (3)The use of twin crossbar contacts ensures high contact reliability.; (4)Increased packaging density; (5)Nominal operating power: 140 mW; (6)Outstanding vibration and shock resistance.

Diagrams

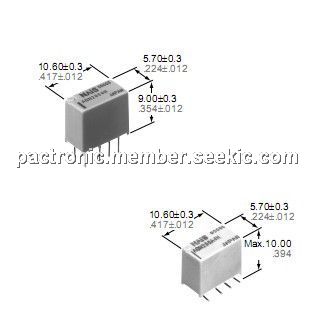

AGN20024 Schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AGN20024
AGN20024
Panasonic Electric Works
Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.75
1-25: $2.45
25-50: $2.33
50-100: $2.08
