Product Summary
The V23092-A1024-A301 is a slim PCB relay SNR. The applications of the V23092-A1024-A301 include centralized and decentralized heating control, extremely narrow interface elements, interface technology, timers, PLCs, I/O modules, I/O-ports.
Parametrics
V23092-A1024-A301 absolute maximum ratings: (1)Dielectric strength coil-contact circuit: 4000Vrms; open contact circuit: 1000Vrms; (2)Clearance / creepage coil-contact circuit: ≥ 6 / 8 mm; (3)Material group of insulation parts: IIIa; (4)Tracking index of relay base: PTI 250; (5)Insulation to IEC 60664-1: Type of insulation coil-contact circuit: reinforced; open contact circuit: functional; Rated insulation voltage: 250 V; Pollution degree: 3 to 2; Rated voltage system 230V to 400V; Overvoltage category: III.
Features
V23092-A1024-A301 features: (1)1 pole 6 A, 1 CO or 1 NO contact; (2)Only 5 mm wide; (3)Sensitive coil 170mW; (4)4 kV coil-contact, 6 / 8 mm clearance/creepage, NO version with 8 / 8 mm clearance/creepage on request; (5)Reinforced insulation (protection class II); (6)Allows high function-/packing density; (7)Cadmium-free contacts, AgNi 90/10 for AC-loads; (8)RoHS compliant (Directive 2002/95/EC) as per product date code 0404.

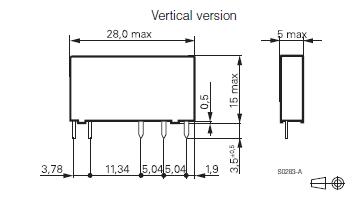

Diagrams
