Product Summary

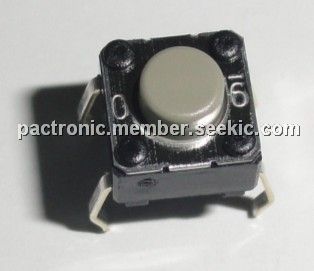

The B3F-1022 is a tactile switch. It has a wide range of models: 6 × 6mm, 12 × 12mm, side-operated, high-force, and gold-plated.
Parametrics
B3F-1022 specifications: (1) Switching capacity: 1 to 50mA, 5 to 24VDC (resistive load); (2) Ambient operating temperature: -25°C to 70°C at 60% max. Humidity (with no icing or condensation); (3) Ambient operating humidity: 35% to 85 %( at 5 to 35°C); (4) Contact form: SPST-NO; (5) Contact resistance: 100mΩ max. (Initial value)(Rated: 1mA, 5VDC); (6) Insulation resistance: 100MΩ min. (at 250VDC); (7) Dielectric strength: 500VAC, 50/60 Hz for 1min; (8) Bounce time: 5ms max; (9) Vibration resistance: Malfunction: 10 to 55Hz, 1.5mm double amplitude.
Features
B3F-1022 features: (1) A positive click action plus a long life equal to that of a no-contact switch; (2) Radial models (taping specifications) that allow the use of general-purpose radial taping parts insertion machines have been added to the series; (3) Series also includes gold-plated models delivering long-term contact and insulation reliability; (4) Projected plunger types that allow the installation of B32-series special key tops are available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 B3F-1022 |
Omron Electronics |
Tactile & Jog Switches 6X6 Flat 5mm Btn Force 150g w/Grd |
Data Sheet |
|
|
||||||||||||
|
B3F-1022-G |
Omron Electronics |
Tactile & Jog Switches Flat w/out Grd Trm 5.0 x 6.5mm 176g |
Data Sheet |
|
|
||||||||||||
 |
B3F-1022S |
Omron Electronics Inc-ECB Div |
MECHANICAL KEYSWITCH |
Data Sheet |
|
|
||||||||||||
