RY610005

RY610005, General Purpose Relay, REEL, TE, 8A, 2000V, 6/1200 min-1

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.93 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.93

PartNumber:: RY610005

Brand:: TE connectivity - TE | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. loby chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-21

From Other Seller

Part Number:RY610005
US $0.40 - 0.93
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The RY610005 is a General Purpose Relay. The applications of the RY610005 include heating control, interface technology, domestic appliances, timers, temperature control.

Parametrics

RY610005 absolute maximum ratings: (1) Contact configuration: 1 CO or 1NO or 1NC; (2) Contact set: single contact; (3) Type of interruption: micro disconnection; (4) Rated current: 8A; (5) Rated voltage / max. Switching voltage AC: 250/400 VAC; (6) Maximum breaking capacity AC: 2000 VA; (7) Contact material: AgNi0, 15, AgSnO2, AgCdO; (8) Mechanical endurance: 30x106 cycles; (9) Rated frequency of operation with / without load: 6/1200 min-1.

Features

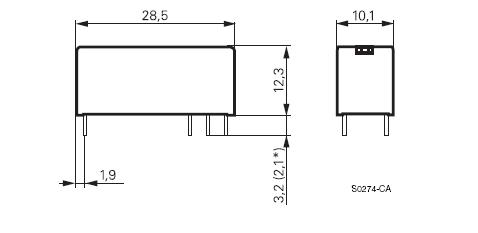

RY610005 features: (1)1 pole 8A, 1 CO or 1 NO or 1 NC contact; (2)Low component height 12.3 mm; (3)5 kV / 8 mm coil-contact; (4)Reinforced insulation (protection class II); (5)Pinnings: 3.2 and 5 mm; (6)reflow-solderable version; (7)Sockets with PCB-type terminals; (8)Especially suitable for resistive and inductive loads on NO and NC contacts; (9)Plastic materials according to IEC60335-1 (domestic appliances) (not at reflow-solderable version); (10)RoHS compliant (Directive 2002/95/EC) as per product date code 0403.
