Product Summary

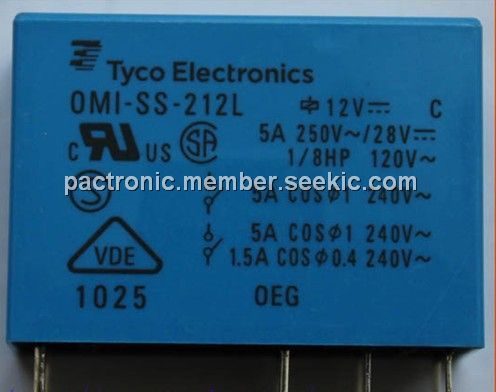

The OMI-SS-212L is a 2 Pole Miniature Power PC Board Relay.
Parametrics
OMI-SS-212L absolute maximum ratings: (1)Ratings: 5A @ 240VAC resistive, 5A @ 120VAC resistive, 5A @ 30VDC resistive, 1/8 HP @ 250VAC; (2)1.5A @ 240VAC inductive (cosφ= 0.4); (3)1.5A @ 120VAC inductive (cosφ= 0.4); (4)1.5A @ 24VDC inductive (L/R=7msec); (5)Max. Switched Voltage: AC: 240V, DC: 30V; (6)Max. Switched Current: 5A; (7)Max. Switched Power: OMI: 1,200VA, 150W; (8)Temperature Operating Range: -30℃ to +70℃.
Features
OMI-SS-212L features: (1)Meet UL 508, VDE0435 and SEMKO requirements; (2)2 Form A and 2 Form C contact arrangements; (3)Immersion cleanable, sealed version available; (4)Meet 5,000V dielectric voltage between coil and contacts; (5)Meet 10,000V surge voltage between coil and contacts (1.2/50μs).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OMI-SS-212L,500 |
TE Connectivity / OEG |
General Purpose / Industrial Relays 2 FORM C,DPDT, 2 C/O w/o coil supres diod |
Data Sheet |
|
|
||||||||||||
|
OMI-SS-212LM,500 |
|
RELAY GEN PURPOSE DPST 5A 12V |
Data Sheet |
Negotiable |
|
||||||||||||
