Product Summary

The ALD124 is a Slim Power Relay.

Parametrics

ALD124 absolute maximum ratings: (1)Nominal voltage: 24 V DC; (2)Pick-up voltage, (Initial): 18 V DC (max.); (3)Coil resistance: 2880Ω; (4)Nominal operating currrent 8.3mA ; (5)Nominal operating power: 200mW; (6)Maximum allowable voltage: 31.2V.

Features

ALD124 features: (1)Slim type: Width 7 mm; (2)Perfect for small load switching of; (3)home appliances; (4)Low operating power; (5)High shock resistance; (6)High insulation resistance; (7)UL/CSA, VDE, TüV approved.

Diagrams

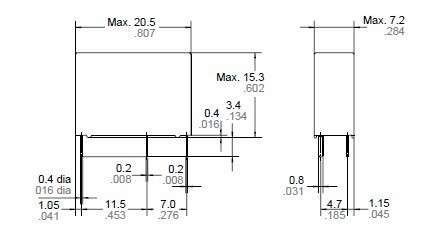

ALD124 DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ALD124
ALD124
Panasonic Electric Works
General Purpose / Industrial Relays 3A 24VDC SPST PCB
Data Sheet
0-1: $1.36
1-25: $1.25
25-50: $1.11
50-100: $0.97
ALD124W
ALD124W
Panasonic Electric Works
General Purpose / Industrial Relays 1 Form A 3A 277VAC 3A 30VDC 24V
Data Sheet
0-1: $1.39
1-25: $1.27
25-50: $1.14
50-100: $0.97
