Product Summary
The OMI-SH-112LM is a 16A Miniature Power PC Board Relay.
Parametrics
OMI-SH-112LM absolute maximum ratings: (1)Rated Coil Voltage: 12V; (2)Nominal Current: 44.4mA; (3)Coil Resistance: 270±10% Ohm; (4)Must Operate Voltage: 9V; (5)Must Release Voltage: 1.2V; (6)Operating Temperature Range: -30℃ to +70℃; (7) Operating Humidity: 20 to 85% RH. (Non-condensing).
Features
OMI-SH-112LM features: (1)Meet UL 508, VDE0435 and SEMKO requirements; (2)1 Form A and 1 Form C contact arrangements; (3)Immersion cleanable, sealed version available; (4)Meet 5,000V dielectric voltage between coil and contacts; (5)Meet 10,000V surge voltage between coil and contacts (1.2/50μs).

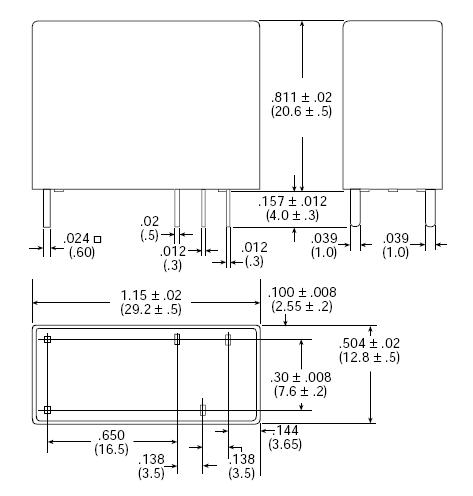

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OMI-SH-112LM,394 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 10A 12VDC Mini PWR PCB Relay |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
OMI-SH-105D,300 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPDT 10A 5VDC |
Data Sheet |
|
|
||||||||||||
|
OMI-SH-105L,300 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPDT 10A 5VDC SENS |
Data Sheet |
|
|
||||||||||||
|
OMI-SH-105LM,394 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 10A 5VDC Mini PWR PCB Relay |
Data Sheet |
|
|
||||||||||||
|
OMI-SH-112DM,394 |
|
RELAY GEN PURPOSE SPST 10A 12V |
Data Sheet |
|
|
||||||||||||
|
OMI-SH-112LM,394 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 10A 12VDC Mini PWR PCB Relay |
Data Sheet |
|
|
||||||||||||
|
OMI-SH-124D,300 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPDT 10A 24VDC |
Data Sheet |
|
|
||||||||||||
