Product Summary

The G6K-2F-Y-DC5V is a Surface Mounting Relay with the World’s Smallest Mounting Area and a Height of Only 5.2 mm. The applications of the G6K-2F-Y-DC5V include Telephones, communications equipment, measurement devices, office automation machines, and audio–visual products.

Parametrics

G6K-2F-Y-DC5V absolute maximum ratings: (1) Rated voltage: 3V; (2) Rated current: 33.0mA; (3) Coil resistance: 91Ω; (4) Must operate voltage: 80% max. of rated voltage; (5)Must release voltage: 10% min. of rated voltage; (6)Max. voltage: 150% of rated voltage at 23℃ to 70℃; (7)Power consumption: Approx. 100mW.

Features

G6K-2F-Y-DC5V features: (1)Subminiature model as small as 5.2 (H)×6.5 (W)×10 (L) mm is ideal for high-density mounting.; (2)Low profile of 5.2 mm and weight of only 0.7 g combine to improve mounting efficiency.; (3)Models with inside-L surface mounting terminals are available.; (4)Consumes approximately 70% the power of a conventional OMRON model and operates at a current that is as low as 100mW.; (5)Surface mounting terminal models incorporate a unique terminal structure with high infrared irradiation efficiency which allows the terminal temperature to rise easily when mounting the IRS, thus ensuring excellent soldering.; (6)Ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e., withstanding an impulse withstand voltage of 1,500V for 10×160μs).; (7)New-Y models offer an impulse withstand voltage of 2,500V for 2×10μs (conforms to Telcordia specifications) by optimizing the distance between coil and contacts.; (8)Conforms to UL1950 (File No. E41515)/CSA C22.2 No. 950 (File No. LR24825).

Diagrams

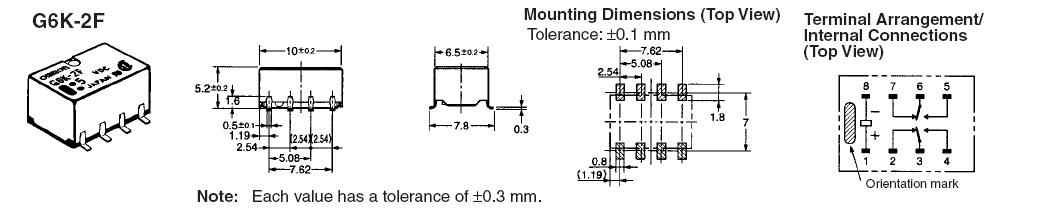

G6K-2F-Y-DC5V dimension
