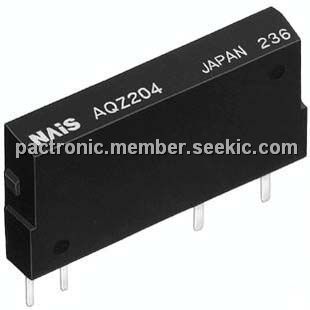

Product Summary

The AQZ204 is a power PhotoMOS relay with Internal Varistor.

Parametrics

AQZ204 absolute maximum ratings: (1)Input LED forward current IF: 50mA; (2)Input LED reverse voltage VR: 3V; (3)Input Peak forward current IFP: 1A; (4)Input Power dissipation Pin: 75mW; (5)Output On resistance Typical: 2.1Ω; (6)Output Off state leakage current: 1mA; (7)Switching speed Turn on time typical: 1.65ms, maximum: 5ms; (8)Switching speed Turn off time typical: 0.08ms, maximum: 3ms; (9)I/O capacitance: 0.8pF; (10)Initial I/O isolation resistance: 1000MΩ; (11)Maximum operating frequency: 1.0cps.

Features

AQZ204 features: (1) An internal varistor on the output side protects the output MOSFET from the reverse voltage from an external voltage surge or inductive load; (2) Supports control of minute loads to a maximum 3.0A. Suitable for output control; (3) Supports both AC and DC; (4) Can be placed on-board the 4-unit relay (power photoMOS relay type); (5) Ideal for inductive loads such as motors, solenoids, and electro-magnetic contactors; (6) High sensitivity, low ON resistance; (7) Compact slim-type 4-pin SIL; (8) Sockets also available; (9) Promoting the CE making.

Diagrams

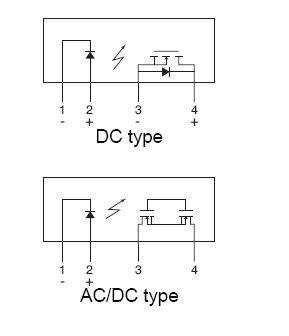

AQZ204 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AQZ204
AQZ204
Panasonic Electric Works
Solid State Relays 0.5A 400V SPST
Data Sheet
0-1: $6.29
1-25: $5.78
25-50: $5.14
50-100: $4.72
AQZ204D
AQZ204D
Panasonic Electric Works
Solid State Relays 400v .5A SIL Form A Norm-Open
Data Sheet
0-1: $8.36
1-25: $7.69
25-50: $6.84
50-100: $5.80
AQZ204V
AQZ204V

RELAY OPTO AC/DC 180V 500MA 4SIP
Data Sheet
Negotiable
