Product Summary

The RTE24024 is a power PCB relay which is used in domestic appliances, heating control and emergency lighting and so on.

Parametrics

RTE24024 absolute maximum ratings: (1) Rated coil voltage range DC coil: 5 to 110 VDC; (2) AC coil: 24 to 230 VAC; (3) Coil power DC coil typ: 400mW; (4) Rated voltage: 24V; (5) Operate voltage: 16.8V; (6) Release voltage: 2.4V; (7) Coil resistance: 1440±10%.

Features

RTE24024 features: (1)2 pole 8 A, 2 CO or 2 NO contacts; (2)DC- or AC-coil; (3)Sensitive coil 400mW; (4)Reinforced insulation; (5)WG version: Product in accordance to IEC60335-1 ; (6)RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

Diagrams

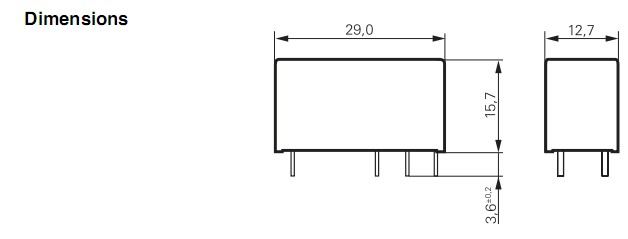

RTE24024 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RTE24024
RTE24024
TE Connectivity / Schrack
General Purpose / Industrial Relays DPDT 8 A 24VDC
Data Sheet
0-1: $1.39
1-25: $1.21
25-50: $1.10
50-100: $0.86
RTE24024F
RTE24024F
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT 8A 24VDC
Data Sheet
0-1: $1.50
1-10: $1.45
10-25: $1.32
25-50: $1.19
