Product Summary
The SS-5GL2 is a subminiature basic switch which offers high reliability and security.
Parametrics
SS-5GL2 specifications: (1)Mounting Screw Mount; (2)Maximum Movement Differential: 0.8mm; (3)Minimum Over-Travel: 1.2mm; (4)Product Depth: 6.4mm; (5)Maximum AC Voltage Rating: 250V; (6)Product Type Switch Snap Action; (7)Product Height: 25.7mm; (8)Actuator Style Hinge Roller Lever; (9)Maximum DC Voltage Rating: 14V; (10)Maximum Current Rating :5A, 125VAC 14VDC ; (11)Operating Force: 0.49N; (12)Release Force: 0.06N.
Features
SS-5GL2 features: (1)The OMRON best-selling micro switches of a wide variety from 0.1A to 10.1A; (2)A variety of models are available, with operating force ranging from low to high; (3)Two split springs ensure a high stability and durability of 30000000 operations.

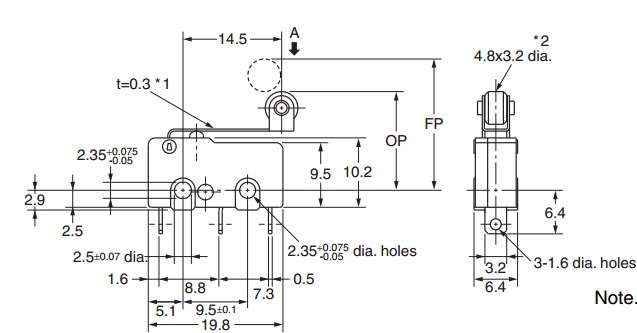

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS-5GL2 |
Omron Electronics |
Basic / Snap Action / Limit Switches HINGED RLLR LVR SLDR |
Data Sheet |
|
|
||||||||||||
 |
SS-5GL2-2 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL2-3 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL2-3T |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL2D |
Omron Electronics |
Basic / Snap Action / Limit Switches 5A PC/MNT LEVER NC/NR |
Data Sheet |
|
|
||||||||||||
|
SS-5GL2D1 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL2D2 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL2-F |
Omron Electronics |
Basic / Snap Action / Limit Switches 5A Switch Basic SPDT Solder |
Data Sheet |
|
|
||||||||||||
