Product Summary

The AXE524124 is a kind of narrow pitch（0.4mm） connector. Its 2.5 mm wide ultra-slim body contributes to further contributes to further enhancement of target equipment. Recommended for board-to-FPC connections of mobile equipment,such as cellular phones, smart phones, notebook PCs, and portable music players.

Parametrics

AXE524124 absolute maximum ratings: (1)Rated current 0.3A; (2)Insulation resistance (min) 1000MΩ; (3)Rated voltage 150V; (4)Contact resistance (max) 90mΩ;(5)Insertion and removal life 30 time.

Features

AXE524124 features:(1)Ultra slim two-piece connectors having a 2.5 mm width;(2)TOUGHT CONTACT ADVANCED structure adopted to ensure high resistance to various environments in spite of the ultra-slim and low profile body;(3)The simple lock structure gives tactile feedback that ensures a superior mating/unmating operation feel;(4)Gull-wing terminal structure.

Diagrams

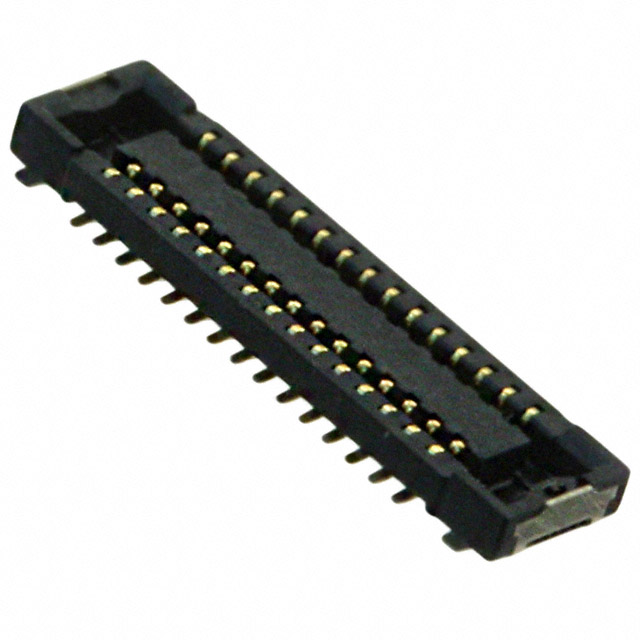

AXE524124 Dimmension socket

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AXE524124
AXE524124
Panasonic Electric Works
FFC / FPC Connectors Socket 0.4mm,24-pin w/o positioning boss
Data Sheet
0-3590: $0.80
3590-5000: $0.76
