Product Summary

The ALD112 is a Slim Power Relay.

Parametrics

ALD112 absolute maximum ratings: (1)Nominal voltage: 12 V DC; (2)Pick-up voltage, (Initial): 9 V DC (max.); (3)Coil resistance: 720Ω; (4)Nominal operating currrent:16.7mA ; (5)Nominal operating power: 200mW; (6)Maximum allowable voltage: 15.6V.

Features

ALD112 features: (1)Slim type: Width 7 mm; (2)Perfect for small load switching of; (3)home appliances; (4)Low operating power; (5)High shock resistance; (6)High insulation resistance; (7)UL/CSA, VDE, TüV approved.

Diagrams

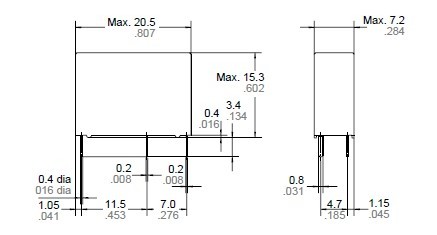

ALD112 DIMENSIONS
