Product Summary

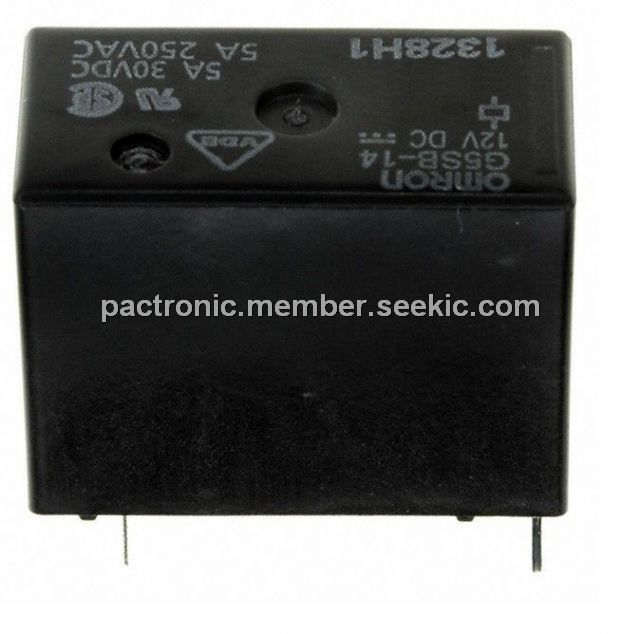

The G5SB-14-DC12V is a compact single-pole relay for switching 5 A (normally open contact), fan control of air conditioners, and heating control of small appliances.

Parametrics

G5SB-14-DC12V absolute maximum ratings: (1)Load Resistive load; (2)Rated load: 3 A at 125 VAC; (3)Rated carry current: 5 A (NO)/3 A (NC); (4)Max. switching voltage: 250 VAC, 30 VDC; (5)Max. switching current: 5 A (NO)/3 A (NC); (6)Max. switching capacity: 1,250 VA, 150 W (NO); 750 VA, 30 W (NC); (7)Min. permissible load: 10 mA at 5 VDC.

Features

G5SB-14-DC12V features: (1)High insulation between coil and contact; (2)Impulse withstand of 8kV; (3)Fully sealed; (4)Incorporates 5A NO contact.

Diagrams

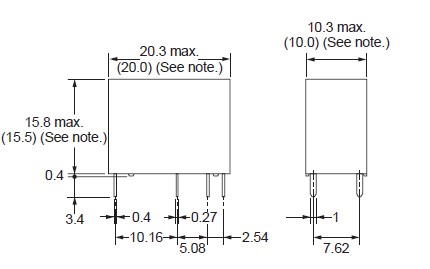

G5SB-14-DC12V Dimensions

G5SB
G5SB

Other


Data Sheet

Negotiable
G5SB-1 DC12
G5SB-1 DC12

Omron Electronics

General Purpose / Industrial Relays SPDT 12VDC 5A 33.3mA 12VDC SPDT

Data Sheet
