Product Summary
The JW1FSN-24V is a compact pc board power relay. The applications of the JW1FSN-24V include TV sets, VCR, Microwave ovens, Photocopiers, Vending machines.
Parametrics
JW1FSN-24V absolute maximum ratings: (1) Arrangement: 1 Form A 1 Form C, 2 Form A 2 Form C; (2) Initial contact resistance, max. (By voltage drop 6V DC 1A): 100mΩ; (3)Contact material: Silver alloy; (4) Nominal switching capacity: 5A 250V AC, 5A 30V DC; (5) Max. Switching power: 1,250 VA, 150W; (6) Max. switching voltage: 250 V AC, 30 V DC; (7) Max. Switching current: 5A;(8) Nominal operating power: 530mW.
Features
JW1FSN-24V features: (1) Miniature package with universal terminal footprint; (2) High dielectric withstanding for transient protection: 10000V surge in μs between coil and contact; (3) Sealed construction; (4) Class B coil insulation types available; (5) TV rated (TV-5) types available (only for 1 Form A type); (6)VDE, TUV, SEMKO, SEV, FIMKO, TV-5 also approved.

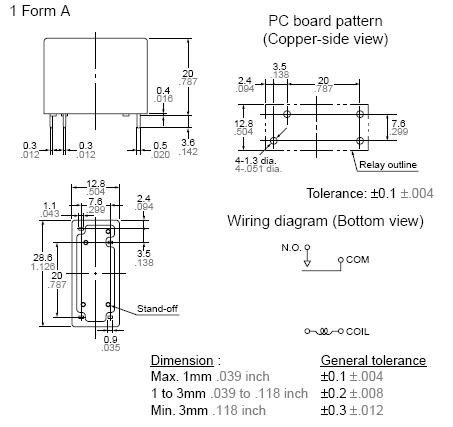

Diagrams
 |
