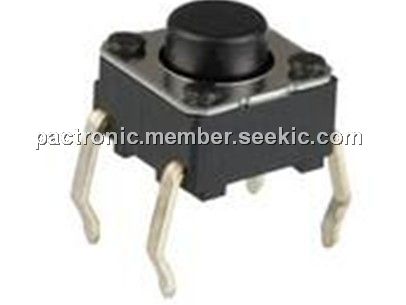

B3F-1000

Tactile switch, 1 to 50mA, 5 to 24VDC, B3F-1000, 10 to 55Hz, REEL

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.32

PartNumber:: B3F-1000

Brand:: Omron Electronics LLC - OMRON | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. loby chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-27

From Other Seller

Part Number:B3F-1000
US $0.12 - 0.32
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The B3F-1000 is a tactile switch. It has a wide range of models: 6 × 6mm, 12 × 12mm, side-operated, high-force, and gold-plated.

Parametrics

B3F-1000 specifications: (1) Switching capacity: 1 to 50mA, 5 to 24VDC (resistive load); (2) Ambient operating temperature: -25°C to 70°C at 60% max. Humidity (with no icing or condensation); (3) Ambient operating humidity: 35% to 85 %( at 5 to 35°C); (4) Contact form: SPST-NO; (5) Contact resistance: 100mΩ max. (Initial value)(Rated: 1mA, 5VDC); (6) Insulation resistance: 100MΩ min. (at 250VDC); (7) Dielectric strength: 500VAC, 50/60 Hz for 1min; (8) Bounce time: 5ms max; (9) Vibration resistance: Malfunction: 10 to 55Hz, 1.5mm double amplitude.

Features

B3F-1000 features: (1)A positive click action plus a long life equal to that of a no-contact switch; (2)Radial models(taping specifications) that allow the use of general-purpose radial taping parts insertion machines have been added to the series; (3)Series also includes gold-plated models delivering long-term contact and insulation reliability; (4)Projected plunger types that allow the installation of B32-series special key tops are available.
