AXK740147G

AXK740147G, narrow-pitch connector, REEL, 0.3A, 60V, 90mΩ, 0.03g

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.32

PartNumber:: AXK740147G

Brand:: Panasonic Semiconductor - Panasonic | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. loby chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-25

From Other Seller

Part Number:AXK740147G
US $0.12 - 0.32
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

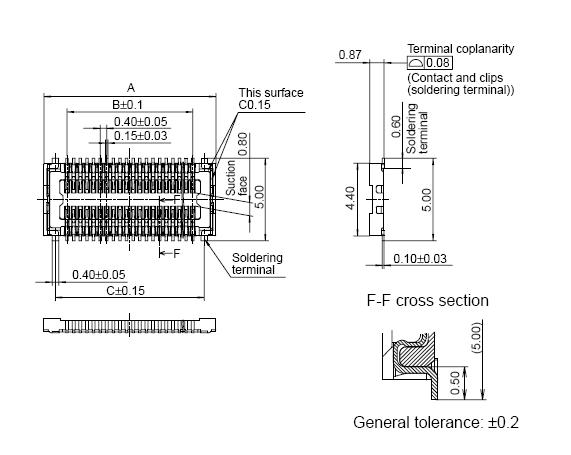

The AXK740147G is a narrow-pitch connector for board-to-FPC connection. The applications of the AXK770147G include Compact portable devices “Cellular Socket Header phones, DVD, DSC, etc.”

Parametrics

AXK740147G absolute maximum ratings: (1) Rated current: 0.3A/contact (Max. 5A at total contacts); (2)Rated voltage: 60V AC/DC; (3)Breakdown voltage: 150V AC for 1 min.; (4)Insulation resistance: Min. 1,000MΩ (initial); (5)Contact resistance: Max. 90mΩ; (6)Ambient temperature: -55℃ to +85℃; (7)Soldering heat resistance: 300℃ within 5 sec, 350℃ within 3 sec.; (8)Storage temperature: -55℃ to +85℃ (product only), -40℃ to +50℃ (emboss packing); (9)Insertion and removal life: 50 times; (10)Unit weight: 20-contact type: Socket: 0.03g Header: 0.01g.

Features

AXK740147G features: (1) The lowest profile class among two-piece connectors in the world (Mated height: 0.9mm); (2) Strong resistance to adverse environments! Utilizes construction for high contact reliability; (3) Improved mating strength between the socket and header; (4) Easy to design product circuits; (5) Connectors for inspection available.
