Product Summary
The AXK7L60125BG is a narrow-pitch connector for board-to-FPC connection. The applications of the AXK7L60125BG include Compact portable devices “Cellular Socket Header phones, DVD, DSC, etc.”
Parametrics
AXK7L60125BG absolute maximum ratings: (1) Rated current: 0.3A/contact (Max. 5A at total contacts); (2) Rated voltage: 60V AC/DC; (3) Breakdown voltage: 150V AC for 1 min.; (4) Insulation resistance: Min. 1,000MΩ (initial); (5) Contact resistance: Max. 90mΩ; (6)Ambient temperature: -55℃ to +85℃; (7)Soldering heat resistance: 300℃ within 5 sec, 350℃ within 3 sec.; (8)Storage temperature: -55℃ to +85℃ (product only), -40℃ to +50℃ (emboss packing); (9)Insertion and removal life: 50 times; (10) Unit weight: 20-contact type: Socket: 0.03g Header: 0.01g.
Features
AXK7L60125BG features: (1) The lowest profile class among two-piece connectors in the world (Mated height: 0.9mm); (2) Strong resistance to adverse environments! Utilizes construction for high contact reliability; (3) Improved mating strength between the socket and header; (4) Easy to design product circuits; (5) Connectors for inspection available.

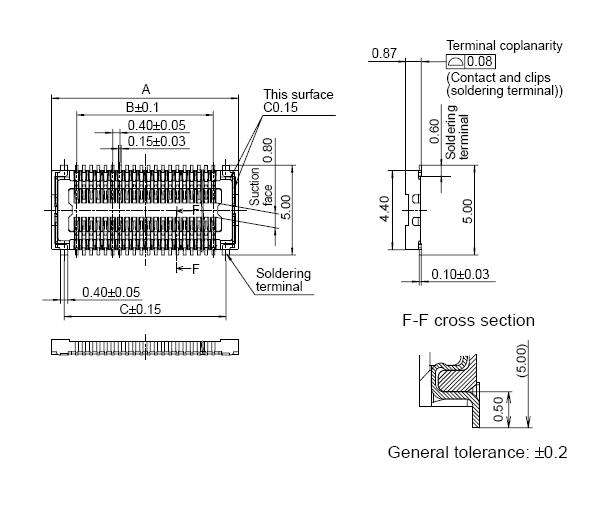

Diagrams
 |
