Product Summary

The DF2-DC12V is a Relay.

Parametrics

DF2-DC12V absolute maximum ratings: (1)Contact arrangement: 2CO; (2)Contact material: gold-clad silver; (3)Volumetric resistance: ＜50mΩ; (4)Max. Switching current: 1A; (5) Max. Rated current: 1A; (6) Max. Switching Power (resistive load): 30/30 W/VA; (7)Nominal operating power: 200mW; (8)Ambient temperature: -40℃ to +70℃.

Features

DF2-DC12V features: (1)high contact reliability; (2)8cN bifurcated contact force; (3)Au/Ag bifurcated contact; (4)1-2μV themovoltage; (5)For switching dry loads or power; (6)Protection class IP67.

Diagrams

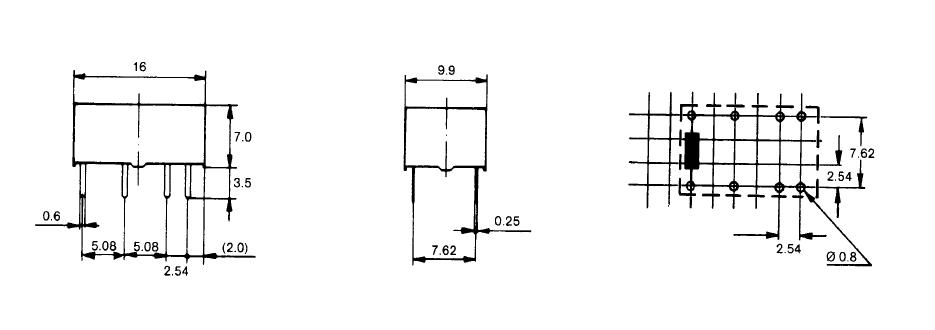

DF2-DC12V dimension
