The DSP2A-L2-24V is a miniature power relay.

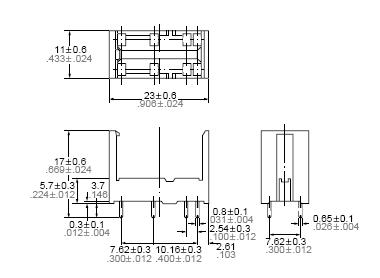

Parametrics
DSP2A-L2-24V absolute maximum ratings: (1) Max. Operating speed:30 cps. At rated load; (2)Initial insulation resistance: Min. 1,000MΩ at 500V; (3)Initial breakdown voltage Between open contacts: 100V; (4)Surge voltage between contacts and coil: Min. 5000V; (5)Set time (at nominal voltage): Max. 10ms (Approx. 5ms); (6)Reset time (at nominal voltage): Max. 10ms (Approx. 4ms); (7)Operate time (at nominal voltage): Max. 10ms (Approx. 5ms); (8)Temperature rise: Max. 40℃ (1a1b type); (9)Conditions for operation, transport and storage: -40℃ to 65℃; (10)Unit weight: 4.3g.
Features
DSP2A-L2-24V features: (1) Power types added to DS relay series; (2)High switching capacity: 1a: 8A 250V AC/1a1b, 2a: 5A 250V AC; (3)High sensitivity: 190mW pick-up power; (4)High contact welding resistance; (5)Latching types available; (6)High breakdown voltage 3,000Vrms between contacts and coil 1,000Vrms between open contacts Meeting FCC Part 68; (7)Sealed types are standard.
