Product Summary

The G6B-1114P-US-DC12V is a sub-miniature relay that switches up to 5 A.

Parametrics

G6B-1114P-US-DC12V absolute maximum ratings: (1)Must operate voltage: 80% max. of rated voltage; (2)Must release voltage 10% min. of rated voltage; (3)Max. voltage: 140% of rated voltage (at 23℃); (4)Power consumption: Approx. 300 mW; (5)Rated current: 16.7 mA; (6)Coil resistance: 720 Ω.

Features

G6B-1114P-US-DC12V features: (1)Sub-miniature: 20 x 10 x 10 mm (L x W x H); (2)Low power consumption: 200 mW; (3)Unique moving loop armature reduces relaysize, magnetic interference, and contactbounce time; (4)Single- and double-winding latching types also available.

Diagrams

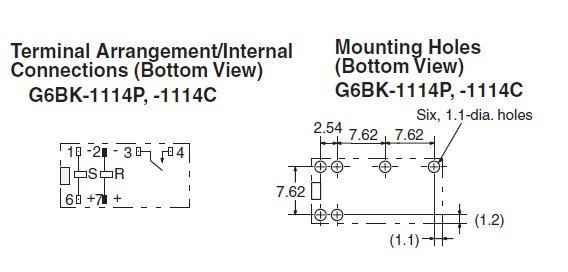

G6B-1114P-US-DC12V package diagram

G6B-1114C-FD-US DC12
G6B-1114C-FD-US DC12
