Product Summary

The G6B-1114P-US-DC5V is a sub-miniature relay that switches up to 5 A.

Parametrics

G6B-1114P-US-DC5V absolute maximum ratings: (1)Must operate voltage: 80% max. of rated voltage; (2)Must release voltage 10% min. of rated voltage; (3)Max. voltage: 140% of rated voltage (at 23℃); (4)Power consumption: Approx. 300 mW; (5)Rated voltage: 5 VDC; (6)Rated current: 60 mA; (7)Coil resistance: 83.3 Ω.

Features

G6B-1114P-US-DC5V features: (1)Sub-miniature: 20 x 10 x 10 mm (L x W x H); (2)Low power consumption: 200 mW; (3)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4)Single- and double-winding latching types also available.

Diagrams

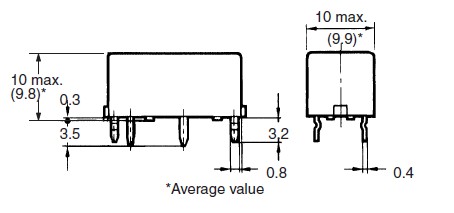

G6B-1114P-US-DC5V Dimension
