Product Summary

The G6C-1114P-US-12V is a Power PCB Relay.

Parametrics

G6C-1114P-US-12V absolute maximum ratings: (1) Rated load Resistive load (p.f. = 1): 10A at 250VAC, 10A at 30VDC; (2) Contact material: Ag Alloy; (3) Rated carry current: 10A; (4) Max. Operating voltage: 380VAC, 125VDC; (5) Max. Operating current: 10A; (6) Max. Switching capacity: 2500 VA, 300W; (7) Min. permissible load: 10mA at 5VDC.

Features

G6C-1114P-US-12V features: (1)Subminiature 20.07 L×14.99 W×9.91 H mm (0.79 L ×0.59 W ×0.39 H in); (2)Low power consumption (200mW); (3)Semi-sealed and sealed types available; (4)Unique moving magnet armature (Moving Loop System) reduces relay size, magnetic interference, and contact bounce time; (5)Single and double-winding latching types available; (6)High sensitivity in a compact package; (7)Long life assured by high contact pressure.

Diagrams

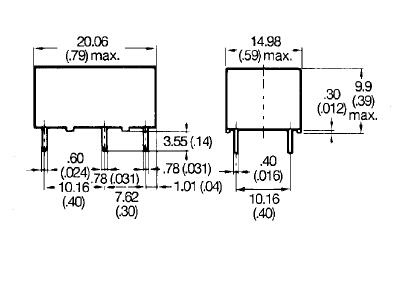

G6C-1114P-US-12V dimension

G6C-1114P-US
G6C-1114P-US
