Product Summary
The G6H-2-DC5V is a PCB Relay.
Parametrics
G6H-2-DC5V absolute maximum ratings: (1)Rated voltage: 3 VDC; (2)Rated current: 46.7 mA; (3)Coil resistance: 64.3 Ω; (4)Coil inductance: Armature OFF: 0.025; Armature ON: 0.022; (5)Must operate voltage: 75% max. of rated voltage; (6)Must release voltage: 10% min. of rated voltage; (7)Max. voltage: 200% of rated voltage at 23℃; (8)Power consumption: Approx. 140 mW.
Features
G6H-2-DC5V features: (1)Compact size and low 5-mm profile.; (2)Low power consumption (140 mW for single-side stable, 100 to 300 mW for latching type) and high sensitivity.; (3)Low thermoelectromotive force.; (4)Low magnetic interference enables high-density mounting.; (5)Single- and double-winding latching types also available.

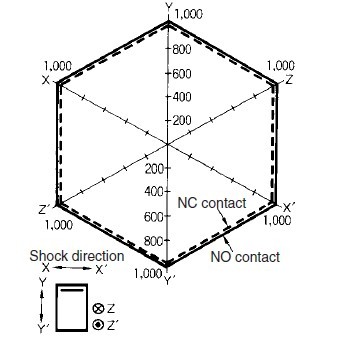

Diagrams
 |
