Product Summary

The JS-12-K is a Power Relay.

Parametrics

JS-12-K absolute maximum ratings: (1) Configuration: 1 form A (SPST-NO), 1 form C (SPDT); (2) Construction: Single; (3) Material: 0.3μ Au plated, 3μ Au plated; (4) Resistance (initial): Max. 100mΩ at 6VDC, 1A, Max. 30mΩ at 6VDC, 1A; (5) Contact rating: 8A, 250VAC/24VDC; (6) Max. Carrying current: 10A; (7) Max. Switching voltage: 400VAC/150VDC; (8) Max. Switching power: 2,000VA/192W; (9) Min. switching load: 100mA, 5VDC; (10) Rated power (at 20℃): 220mW to 290mW; (11) Operate power (at 20℃): 110mW to 140mW; (12) Operating temperature range: -40℃ to +85℃ (no frost).

Features

JS-12-K features: (1)UL class B (130°C) coil wire insulation; (2)1 form A (SPST-NO) or 1 form C (SPDT) contact; (3)Low profile and space saving: Height: 12.5 mm - Mounting space: 290 mm2; (4)High sensitivity in small package: Operating power 110mW to 140mW, Nominal power 220mW to 290mW; (5)High insulation in small package: Insulation distance: 8.0mm (between coil and contacts), Dielectric strength: 5,000VAC, Surge strength: 10,000V; (6)Plastic materials: UL 94 flame class V-0-UL CTI level class 2; (7)Plastic sealed type; (8)Various contact material options; (9)RoHS compliant. Please see page 6 for more information.

Diagrams

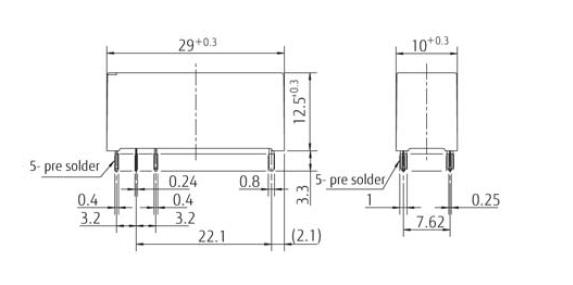

JS-12-K dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
JS-12-K
JS-12-K
Fujitsu
General Purpose / Industrial Relays POWER
Data Sheet
0-1: $1.82
1-100: $1.54
100-500: $1.32
500-1000: $1.21
JS-12-K-V3
JS-12-K-V3
Fujitsu
General Purpose / Industrial Relays POWER
Data Sheet
0-1: $1.95
1-100: $1.66
100-500: $1.42
500-1000: $1.30
