Product Summary

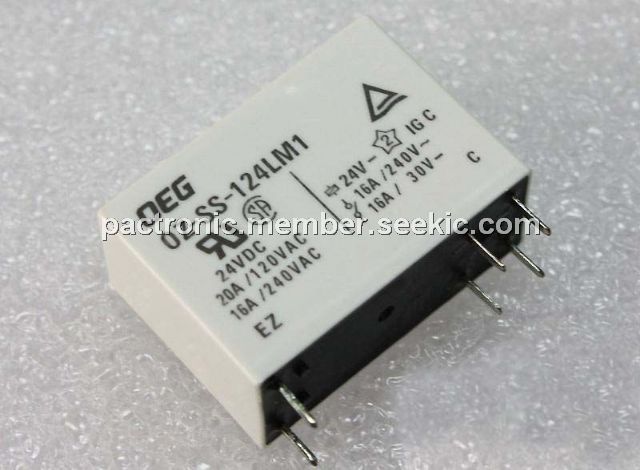

The OZ-SS-124LM1 is a Power PCB Relay. The applications of the OZ-SS-124LM1 include Home appliances, office machines.
Parametrics
OZ-SS-124LM1 absolute maximum ratings: (1) Coil voltage range: 5V to 48V; (2) Rated voltage: 12V; (3) Operate voltage: 8.4V; (4) release voltage: 0.6V; (5) Coil resistance 200Ω±10%; (6) Rated coil power: 720mW.
Features
OZ-SS-124LM1 features: (1)1 pole, 16A, 1 form A(NO) or 1 form C (CO); (2)UL TV-8 (OZT) available; (3)Meet 5000V dielectric voltage between coil and contacts; (4)Meet 10000V surge voltage between coil and contacts.

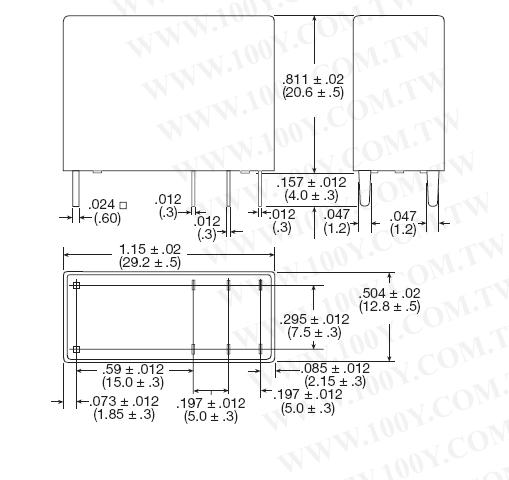

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OZ-SS-124LM1,200 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 16A 24VDC Mini PWR PCB Relay |
Data Sheet |
|
|
||||||||||
|
OZ-SS-124LM1F,000 |
TE Connectivity / OEG |
General Purpose / Industrial Relays SPST-NO 16A 24VDC Mini PWR PCB Relay |
Data Sheet |
|
|
||||||||||
