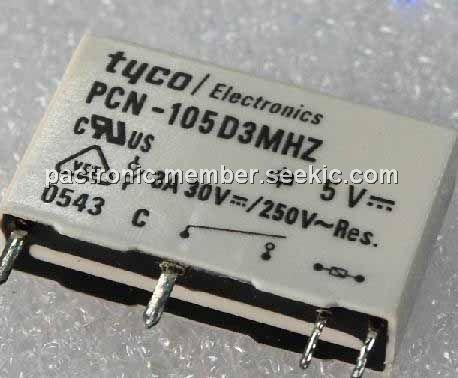

PCN-105D3MHZ

slim PCB relay PCN, 5/2 ms, 3 A, 5 mm, Cadmium-free contacts

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~1.50

PartNumber:: PCN-105D3MHZ

Brand:: TE connectivity - TE | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. loby chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-09

From Other Seller

Part Number:PCN-105D3MHZ
US $0.80 - 1.50
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PCN-105D3MHZ is a slim PCB relay PCN.

Parametrics

PCN-105D3MHZ absolute maximum ratings: (1)Ambient temperature range: -30 to +70 ℃; (2)Operate- / release time: typ. 5/2 ms; (3)Bounce time NO / NC contact < 1ms; (4)Vibration resistance (function) NO / NC contact: 10 g; (5)Shock resistance (function) NO / NC contact: 10 g; (6)Shock resistance (destruction): 100 g; (7)Category of protection: RTIII wash tight; (8)Mounting: pcb; (9)Mounting position: any; (10)Minimum mounting distance: 0 mm; (11)Resistance to soldering heat wash tight version: 260℃ / 5 s.

Features

PCN-105D3MHZ features: (1)1 pole 3 A, 1 NO contact; (2)Only 5 mm wide; (3)3 A switching current; (4)Load range 1 mA up to 3 A; (5)Sensitive coil 120 mW; (6)Allows high function-/packing density; (7)Cadmium-free contacts; (8)Z type with reinforced insulation; (9)RoHS compliant (Directive 2002/95/EC) as per product date code 0424.
