Product Summary

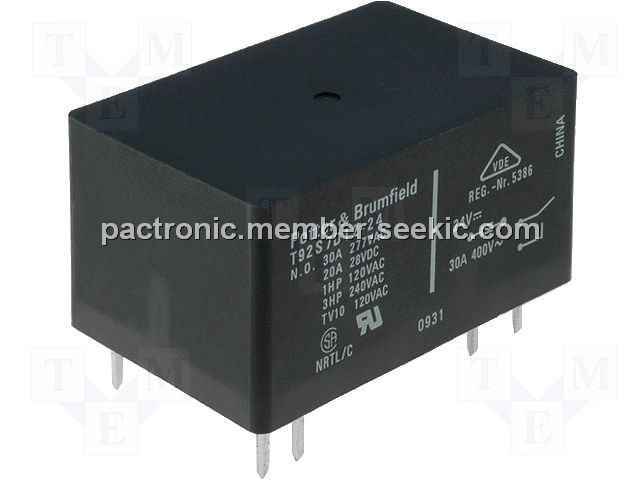

The T92S7D12-24 is a Power Relay. The applications of the T92S7D12-24 include Power supplies, heating & ventilation, control equipment.

Parametrics

T92S7D12-24 absolute maximum ratings: (1)Contact configuration: 2 NO contacts 2 CO contacts; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated voltage / max. switching voltage AC: 400 / 600 VAC; (5)Rated current: 30/20A; (6)Maximum breaking capacity AC, NO/NC contact: 12kVA 12 / 1.2kVA; (7)Contact material: AgCdO; (8)Minimum contact load: 500mA, 12V; (9)Rated frequency of operation with/without load: 7 min-1 / 300 min-1; (10)Operate-/release time (including bounce): 25 / 25 ms.

Features

T92S7D12-24 features: (1)2 pole 30 A, 2 CO or 2 NO contacts; (2)High switching capacity up 30 A / 400 VAC; (3)DC- or AC coil; (4)4 kV / 8 mm coil-contact; (5)Insulation to VDE 0631 and VDE 0700; (6)PCB- or quick connect terminals or chassis mount; (7)Adapter for DIN-rail mounting.

Diagrams

T92S7D12-24 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
T92S7D12-24
T92S7D12-24
TE Connectivity / P&B
General Purpose / Industrial Relays DPST-NO PC MT 24VDC
