Product Summary

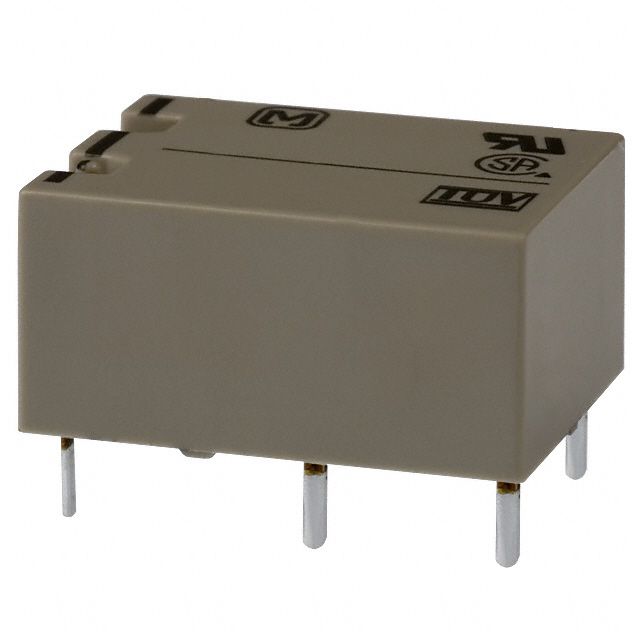

The DK1A-12V is a miniature power relay. The applications of the DK2A-12V include Switching power supply, Power switching for various OA equipment, Control or driving relays for industrial machines (robotics, numerical control machines, etc.), Output relays for programmable logic controllers, temperature controllers, timers and so on, Home appliances.
Parametrics
DK1A-12V absolute maximum ratings: (1) Max. Operating speed: 20cpm (at rated load); (2) Initial insulation resistance: Min. 1,000mΩ (at 500 V DC); (3) Initial breakdown voltage between open contacts: 1000Vrms; (4) Surge voltage between coil and contact: Min. 10000V; (5) Operate time (at nominal voltage): Max. 10ms (Approx. 5ms); (6) Release time (without diode)(at nominal voltage): Max. 8ms (Approx. 3ms); (7) Temperature rise: Max. 40℃ with nominal coil voltage and at 10A switching current; (8)Ambient temp.: –40℃ to +65℃; (9) Humidity: 5 to 85% R.H.
Features
DK1A-12V features: (1)Large capacity in small size: 10 A 250 V AC (1a); (2)High sensitivity: 200mW nominal operating power; (3)High breakdown voltage 4,000Vrms between contacts and coil 1,000Vrms between open contacts Meeting FCC Part 68; (4)Sealed construction; (5)Latching types available.

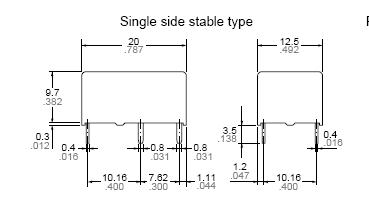

Diagrams
