Product Summary

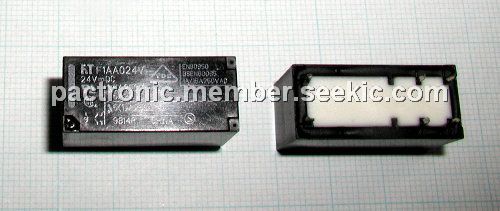

The FTR-F1AA024V is a power relay.
Parametrics
FTR-F1AA024V absolute maximum ratings: (1)Contact Arrangement: 2 form A (DSDT-NO); (2)Contact Material: Gold plate silver tin oxide; (3)Configuration: Single; (4)Resistance (initial): Maximum 100mΩ at 1A, 6V; (5)Rating (resistive): 5A, 250VAC/24VDC; (6)Maximum Carrying Current: 7A; (7)Maximum Switching Rating: 1,250 VA/120W; (8)Maximum Switching Voltage: 400 VAC/300VDC; (9)Maximum Switching Load: 10mA 5V; (10)Coil Nominal Power (at 20℃): 530mW, 110V type: 550mW; (11)Operate Power (at 20℃): 260mW, 110V type: 270mW; (12)Operating Temperature -40℃ to +75℃(no frost).
Features
FTR-F1AA024V features: (1)Low profile power relay (height 16.5mm) employing unique construction; (2)DPST/DPDT 5A, TV-3 rating available; (3)Higher isolation by employing reinforced insulation construction; (4)Insulation distance: 8mm (between coil and contact); (5)Dielectric strength: 5kV (between coil and contact); (6)Surge strength: 10kV (between coil and contact); (7)Pin configuration compatible to VB/FBR620; (8)UL, CSA, VDE, SEMKO, SEV, CQC, FIMKO, IMQ, DEMKO, NEMKO recognized; (9)RoHS compliant since date code: 0434R Please see page 8 for more information.

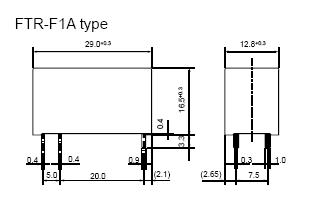

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FTR-F1AA024V |
Fujitsu |
General Purpose / Industrial Relays POWER |
Data Sheet |
|
|
||||||||||||
