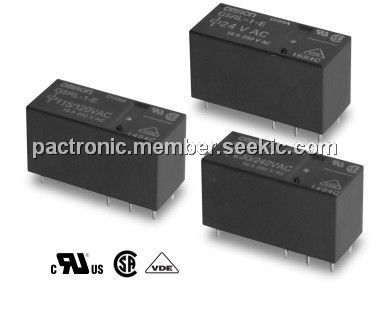

Product Summary

The G5RL-1A-E-24V is a PCB relay with various models.

Parametrics

G5RL-1A-E-24V absolute maximum ratings: (1)Contact material Ag alloy (Cd free); (2)Rated load (resistive): 16 A at 250 VAC 16 A at 24 VDC; (3)Rated carry current: 16 A 16 A (NO), 5 A (NC); (4)Max. switching voltage: 250 VAC, 24 VDC; (5)Max. switching current: 16 A 16 A (NO), 5 A (NC); (6)Max. switching capacity: 4,000 VA, 384 W 4,000 VA, 384 W (NO); (7)when there is no load on (NC): 1,250 VA, 120 W (SPDT); (8)Min. permissible load(reference value) 100 mA at 5 VDC: P level: λ60 = 0.1 x 10–6 operations.

Features

G5RL-1A-E-24V features: (1)Low profile: 15.7 mm in height; (2)Creepage distance 8mm between coil and contacts; (3)10 kV Impulse withstand voltage; (4)Models with AC coil available; (5)High-Inrush model available (Inrush peak currents up to 100 A); (6)Low Noise model available (Approx. 10 to 20 dB less sound pressure than standard G5RL-Series Relays); (7)RoHS Compliant.

Diagrams

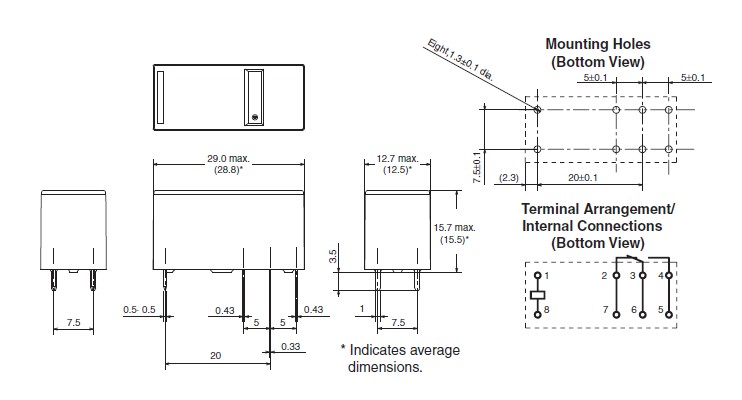

G5RL-1A-E-24V Dimensions

G5RL-1A DC5
G5RL-1A DC5
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
