Product Summary
The G6A-434P-ST20-US-DC5V is a Low Signal Relay.
Parametrics
G6A-434P-ST20-US-DC5V absolute maximum ratings: (1) Rated load Resistive load (p.f.= 1): 0.50A at 125VAC, 2A at 30VDC; (2)Contact material: Ag (Au clad); (3)Carry current: 3A; (4)Max. Operating voltage: 250VAC, 220VDC; (5) Max. Operating current: 2A; (6) Max. Switching capacity: 125VA, 60W; (7) Min. permissible load: 10μA, 10mVDC.
Features
G6A-434P-ST20-US-DC5V features: (1)High sensitivity can be driven by digital circuits; (2)Low-profile design allows use in 12.70 mm PC board rack; (3)Surge withstand voltage meets FCC Part 68 regulation; (4)Units can be mounted side by side due to low magnetic leakage; (5)Special models available for low thermo electromotive force; (6)Unique moving loop (permanent magnet) armature reduces relay size, magnetic interference, and contact bounce time; (7)Single or dual coil winding types available; (8)RoHS Compliant.

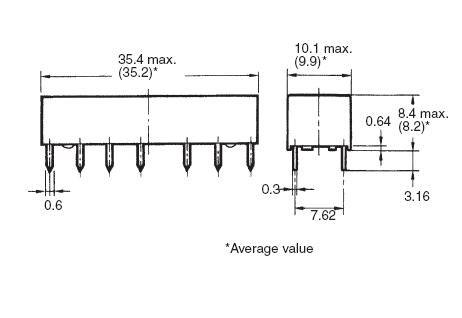

Diagrams
 |
