Product Summary

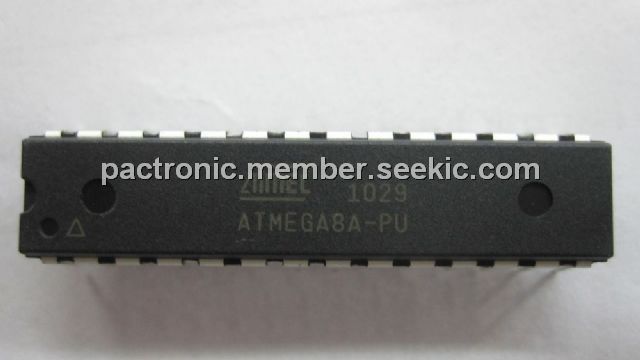

The Atmel AVR ATMEGA8A-8PU is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8A-AU achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA8A-8PU absolute maximum ratings: (1)Operating Voltages: -2.7 - 5.5V; (2)Speed Grades: 0 - 16MHz; (3)Power Consumption at 4Mhz, 3V, 25℃; (4)Active: 3.6mA; (5)Idle Mode: 1.0mA; (6)Power-down Mode: 0.5μA.
Features
ATMEGA8A-8PU features: (1)High-performance, Low-power Atmel AVR 8-bit Microcontroller; (2)Advanced RISC Architecture, 130 Powerful Instructions Most Single-clock Cycle Execution; (3)32 x 8 General Purpose Working Registers; (4)Fully Static Operation; (5)Up to 16 MIPS Throughput at 16MHz; (6)On-chip 2-cycle Multiplier; (7)High Endurance Non-volatile Memory segments; (8)8KBytes of In-System Self-programmable Flash program memory; (9)512Bytes EEPROM; (10)1KByte Internal SRAM; (11)Write/Erase Cycles: 10,000 Flash/100,000 EEPROM; (12)Data retention: 20 years at 85℃/100 years at 25℃; (13)Optional Boot Code Section with Independent Lock Bits; (14)In-System Programming by On-chip Boot Program; (15)True Read-While-Write Operation; (16)Programming Lock for Software Security; (17)Peripheral Features; (18)Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode; (19)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (20)Real Time Counter with Separate Oscillator; (21)Three PWM Channels; (22)8-channel ADC in TQFP and QFN/MLF package; (23)Eight Channels 10-bit Accuracy; (24)6-channel ADC in PDIP package; Six Channels 10-bit Accuracy; (25)Byte-oriented Two-wire Serial Interface; (26)Programmable Serial USART; (27)Master/Slave SPI Serial Interface; (28)Programmable Watchdog Timer with Separate On-chip Oscillator; (29)On-chip Analog Comparator.
Diagrams
 |
