Product Summary

The G6C-2114P-US-12V is a Power PCB Relay.

Parametrics

G6C-2114P-US-12V absolute maximum ratings: (1)Contact resistance: 30mΩ max.; (2)Operate (set) time: 10ms max. (mean value: approx. 5ms); (3)Release (reset) time: 10ms max. (mean value: approx. 2ms); (4)Bounce time Operate: Approx. 3ms; (5)Operating frequency Mechanical: 18,000 operations/hour; (6)Insulation resistance: 1000 MΩ min. (at 500VDC); (7)Dielectric strength: 2000VAC, 50/60 Hz for 1 minute between coil and contacts, non-latching types; (8)Surge withstand voltage 4500 V x 40μs (between coil and contacts, non-latching); (9)Vibration Mechanical durability: 10 to 55 Hz; 1.50 mm (0.06 in) double amplitude; (10)Shock Mechanical durability: Approx. 100G; (11)Ambient temperature: -25℃ to 70℃ (-13°to 158°F); (12)Humidity: 45 to 85% RH; (13)Weight: Approx. 5.6g (0.20 oz).

Features

G6C-2114P-US-12V features: (1)Subminiature 20.07 L x 14.99 W x 9.91 H mm (0.79 L x 0.59 W x 0.39 H in); (2)Low power consumption (200mW); (3)Semi-sealed and sealed types available; (4)Unique moving magnet armature (Moving Loop System) reduces relay size, magnetic interference, and contact bounce time; (5)Single and double-winding latching types available; (6)High sensitivity in a compact package; (7)Long life assured by high contact pressure.

Diagrams

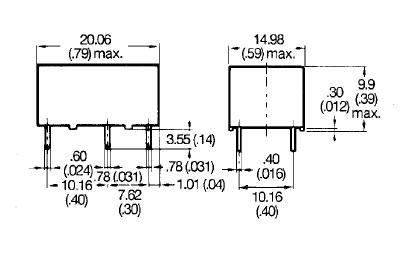

G6C-2114P-US-12V dimension
