PA1A-5V

slim power relay, Wide switching capacity, 120 mW High sensitivity, 4000 V surge voltage, 120 mW Nominal operating power

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.38 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~2.38

PartNumber:: PA1A-5V

Brand:: Panasonic Semiconductor - Panasonic | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. loby chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-05

From Other Seller

Part Number:PA1A-5V
US $1.80 - 2.38
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PA1A-5V is a slim power relay.

Parametrics

PA1A-5V absolute maximum ratings: (1)Max. operating speed: 20 cpm at rated load; (2)Initial insulation resistance: Min. 1,000 MΩ at 500 V DC; (3)Initial breakdown voltage, Between open contacts: 1,000 Vrms; Between contacts and coil: 2,000 Vrms; (4)Surge voltage between contacts and coil: 4,000 V; (5)Operate time: Approx. 6 ms; (6)Release time (at nominal voltage): Approx. 3 ms; (7)Temperature rise Max. 45 ℃ with nominal coil voltage across coil and at nominal switching capacity; (8)Shock resistance, Functional: Min. 147 m/s2 (15 G); Destructive: Min. 980 m/s2 (100 G); (9)Unit weight: Approx 3 g .15 oz.

Features

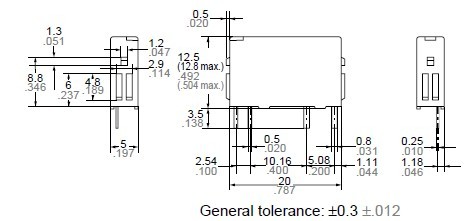

PA1A-5V features: (1)Slim size (width 5 mm .197 inch, height 12.5 mm .492 inch)permits higher density mounting; (2)Wide switching capacity: Control from 100mA 100 mV to 5 A 250 V AC, 30 V DC; (3)High sensitivity: 120 mW (Nominal) (5 to 18 V DC type); (4)High surge voltage (4000 V) and high breakdown voltage(2000 V); (5)Shock & vibration resistance (functional): Min. 147m/s2 (15 G); (6)SIL (single in line) terminal layout; (7)Reinforced according to IEC1131-2.
