Product Summary

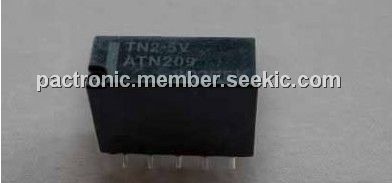

The TN2-5V is a 140mW slim polarized relay.

Parametrics

TN2-5V general specifications: (1) Nominal switching capacity (resistive load): 1 A 30 V DC, 0.5 A 125 V AC; (2) Max. Switching power (resistive load):30 W, 62.5 VA; (3) Max. Switching voltage: 110 V DC, 125 V AC; (4) Max. Switching current: 1A; (5) Min. switching capacity: 10μA 10 mV DC; (6) Arrangement: 2 Form C; (7) Initial contact resistance, max. (By voltage drop 6 V DC 1A):60mΩ; (8) Contact material: Gold-clad silver.

Features

TN2-5V features: (1)Small size for minimal PC board mounting requirements; (2)Small header area makes higher density mounting possible; (3)High sensitivity: 140mW nominal operating power (single side stable 3-12V type); (4)Surge voltage withstand: 1500 V FCC Part 68; (5)Sealed construction allows automatic cleaning; (6)Self-clinching terminal also available.

Diagrams

TN2-5V block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TN2-5V
TN2-5V
Panasonic Electric Works
Low Signal Relays - PCB 1A 5VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.43
1-25: $2.24
25-50: $2.03
50-100: $1.79
TN2-5V-3
TN2-5V-3
Panasonic Electric Works
Low Signal Relays - PCB 2 Form C 1 Form A Gold Contact 5V
Data Sheet
0-1: $2.80
1-25: $2.56
25-50: $2.29
50-100: $1.94
