Product Summary

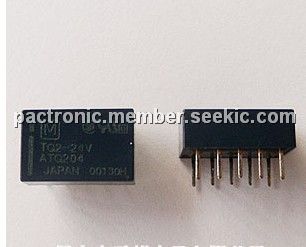

The TQ2-24V is a low profile 2 form C relay.

Parametrics

TQ2-24V absolute maximum ratings: (1)Pick-up voltage: 75%V or less of nominal voltage; (2)Drop-out voltage: 10%V or more of nominal voltage; (3)Nominal operating current: 8.3mA; (4)Coil resistance: 2,880Ω; (5)Nominal operating power: 200mW; (6)Max. applied voltage: 150%V of nominal voltage.

Features

TQ2-24V features: (1)Nominal operating power: High sensitivity of 140mW (2 Form C single side stable type); (2)Suitable for SMD automatic insertion (SA type); (3)High density mounting possible; (4)The use of gold-clad twin crossbar contacts ensures high contact reliability; (5)DIL terminal array enables use of IC sockets.

Diagrams

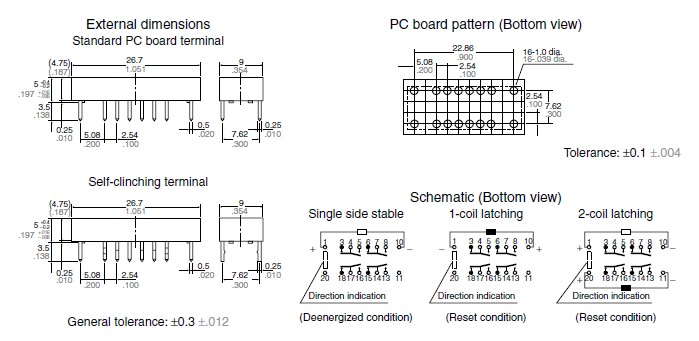

TQ2-24V dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TQ2-24V
TQ2-24V
Panasonic Electric Works
Low Signal Relays - PCB 1A 24VDC DPDT NON-LATCHING PCB
Data Sheet
0-1: $2.22
1-25: $2.04
25-50: $1.96
50-100: $1.65
