Product Summary

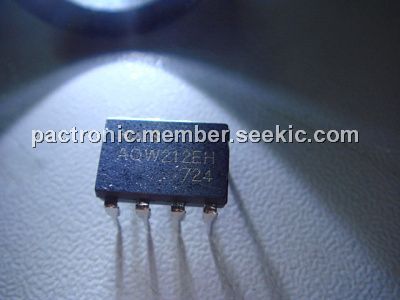

The AQW212EH is a PhotoMOS relay. The applications of the AQW212EH include Modem, Telephone equipment, Security equipment, Sensing equipment.

Parametrics

AQW212EH absolute maximum ratings: (1)LED forward current IF: 50mA; (2)LED reverse voltage VR: 5V; (3)Peak forward current IFP: 1A; (4)Power dissipation Pin: 75mW; (5)Load voltage (peak AC) VL: 60V; (6)Continuous load current IL: 0.50A; (7)Peak load current Ipeak: 1.0A; (8)Power dissipation Pout: 800mW; (9)Total power dissipation PT: 850mW; (10)I/O isolation voltage Viso: 1,500V AC; (11)Operating Temperature range: -40℃ to +85℃; (12)Storage Temperature range: -40℃ to +100℃.

Features

AQW212EH features: (1)Reinforced insulation of 5000V More than 0.4mm internal insulation distance between inputs and outputs; (2)Applicable for 2 Form A use as well as two independent 1 Form A use; (3)Controls low-level analog signals; (4)High sensitivity and high speed response; (5)Low-level off state leakage current of max. 1μA.

Diagrams

“AQW212EH

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AQW212EH
AQW212EH
Panasonic Electric Works
Solid State Relays 60v 500mA DIP Form A Norm-Open
Data Sheet
0-1: $4.02
1-25: $3.68
25-50: $3.29
50-100: $2.79
AQW212EHA
AQW212EHA
Panasonic Electric Works
Solid State Relays 60v 500mA DIP Form A Norm-Open
Data Sheet
0-1: $4.02
1-25: $3.68
25-50: $3.29
50-100: $2.79
AQW212EHAX
AQW212EHAX
Panasonic Electric Works
Solid State Relays RELAY OPTO AC/DC 60V 500MA 8-SMD
Data Sheet
0-1000: $2.38
1000-3000: $2.29
AQW212EHAZ
AQW212EHAZ
Panasonic Electric Works
Solid State Relays RELAY OPTO AC/DC 60V 500MA 8-SMD
Data Sheet
0-1000: $2.38
1000-3000: $2.29
