Product Summary

The FTR-F3AA005E is a 1 pole - 3A/5A slim type power relay.

Parametrics

FTR-F3AA005E absolute maximum ratings: (1)Max. switching voltage: 277VAC; (2)Max. switching power: 750VA; (3)Min. switching load: 10 mA, 5VDC; (4)Material Silver nickel (AgNi): Ag alloy (AgSnO2); (5)Resistance (initial) Max.: 100mOhm at 1A, 6VDC; (6)Rated power (20 ℃): 200mW; (7)Operate power: 113mW; (8)Operating temperature range: -40 ℃ to +70 ℃; (9)Timing Data Operate (at nominal voltage) Max.: 10ms (without bounce, no diode); (10)Release (at nominal voltage) Max.: 10ms (without bounce, no diode).

Features

FTR-F3AA005E features: (1)High density mounting; (2)High insulation; (3)Cadmium free contact for eco-program; (4)Safety standards UL, CSA, VDE, SEMKO, CQC; (5)Plastic sealed relay, RTIII; (6)RoHS compliant Please see page 7 for more information.

Diagrams

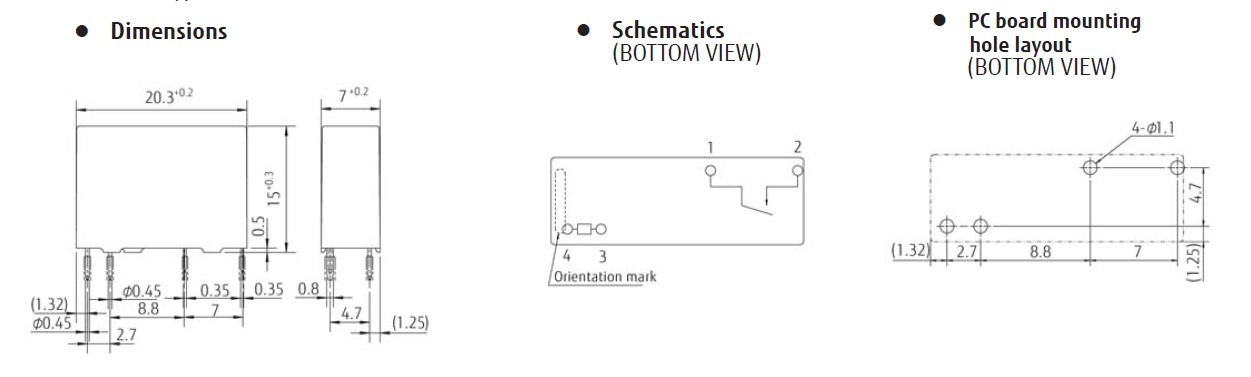

FTR-F3AA005E dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

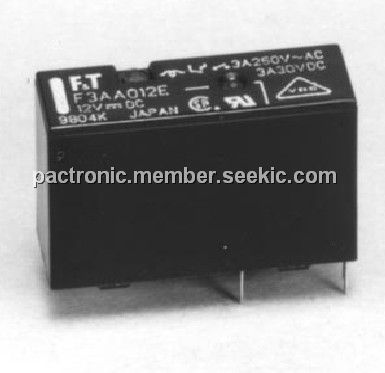

FTR-F3AA005E
FTR-F3AA005E
Fujitsu
General Purpose / Industrial Relays POWER
Data Sheet
0-1: $0.69
1-100: $0.59
100-500: $0.50
500-1000: $0.46
FTR-F3AA005E-HA
FTR-F3AA005E-HA
Fujitsu
General Purpose / Industrial Relays SPST-NO 5 VDC 5A
Data Sheet
0-1: $0.74
1-100: $0.62
100-500: $0.53
500-1000: $0.49
