Product Summary

The AXT530124 is a narrow pitch connector. The applications of the AXT530124 include Recommended for board-to-FPC connections of mobile equipment, such as cellular phones, smart phones, notebook PCs, and portable music players.

Parametrics

AXT530124 absolute maximum ratings: (1) Rated current: 0.3A/contact (Max. 5A at total contacts); (2) Rated voltage: 60V AC/DC; (3) Breakdown voltage: 150V AC for 1 min.; (4) Insulation resistance: Min. 1,000MΩ (initial); (5) Contact resistance: Max. 90mΩ; (6) Composite insertion force: Max. 1.200N/contacts×contacts (initial); (7)Composite removal force: Min. 0.165N/contacts×contacts; (8) Contact holding force (Socket contact): Min. 0.20N/contacts; (9) Ambient temperature: -55℃ to +85℃; (10) Storage temperature: -55℃ to +85℃ (product only), -40℃ to +50℃ (emboss packing); (11) Insertion and removal life: 30 times; (12) Unit weight: 20-contact type: Socket: 0.02g Header: 0.01g.

Features

AXT530124 features: (1)2.5 mm wide ultra-slim two-piece connectors; (2)structure adopted to ensure high resistance to various environments in spite of the ultra-slim and low profile body; (3)The simple lock structure for good mating/unmating operation feel; (4)Mated heights of 0.8 and 1.0 mm are available for the same foot pattern; (5)Connectors for inspection available.

Diagrams

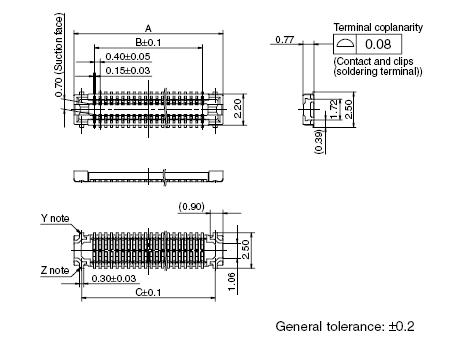

AXT530124 dimension
