Product Summary

The DK2A-12V is a miniature power relay. The applications of the DK2A-12V include Switching power supply, Power switching for various OA equipment, Control or driving relays for industrial, machines (robotics, numerical control machines, etc.)Output relays for programmable logic, controllers, temperature controllers, timers and so on, Home appliances.

Parametrics

DK2A-12V absolute maximum ratings: (1)Max. operating speed: 20cpm (at rated load); (2)Initial insulation resistance: Min. 1,000mΩ (at 500 V DC); (3)Initial breakdown voltage Between open contacts: 1000Vrms; (4)Surge voltage between coil and contact: Min. 10000V; (5)Operate time (at nominal voltage): Max. 10 ms (Approx. 5ms); (6)Release time (without diode) (at nominal voltage): Max. 8ms (Approx. 3ms); (7)Temperature rise: Max. 40℃ with nominal coil voltage and at 10A switching current; (8)Ambient temp.: –40℃ to +65℃; (9)Humidity: 5 to 85% R.H.

Features

DK2A-12V features: (1)Large capacity in small size: 10 A 250 V AC (1a); (2)High sensitivity: 200mW nominal operating power; (3)High breakdown voltage 4,000Vrms between contacts and coil 1000Vrms between open contacts Meeting FCC Part 68; (4)Sealed construction; (5)Latching types available.

Diagrams

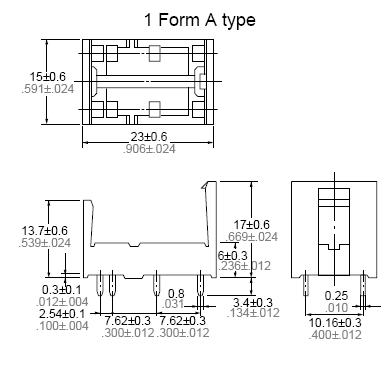

DK2A-12V dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DK2A-12V
DK2A-12V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 12VDC DPST-NO PCB
Data Sheet
0-1: $7.65
1-25: $7.03
25-50: $6.25
50-100: $5.30
