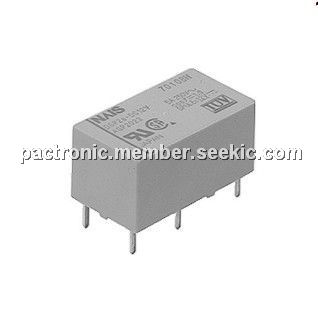

The DSP2A-12V is a miniature power relay in DS relay series.
Parametrics
DSP2A-12V absolute maximum ratings: (1)Minimum operating power, Single side stable: 192 mW, 2 coil latching: 192 mW; (2)Nominal operating power, Single side stable: 300 mW, 2 coil latching: 300 mW; (3)Surge voltage between contacts and coil Min.: 5,000 V; (4)Set time*3 (at nominal voltage) Max.: 10 ms (Approx. 5 ms); (5)Reset time*3 (at nominal voltage) Max.: 10 ms (Approx. 4 ms); (6)Operate time*3 (at nominal voltage) Max.: 10 ms (Approx. 5 ms).
Features
DSP2A-12V features: (1)Power types added to DS relay series; (2)High switching capacity: 1a: 8 A 250 V AC / 1a1b, 2a: 5 A 250 V AC; (3)High sensitivity: 190 mW pick-up power; (4)High contact welding resistance; (5)Latching types available; (6)High breakdown voltage 3,000 Vrms between contacts and coil 1,000 Vrms between open contacts Meeting FCC Part 68; (7)Sealed types are standard.

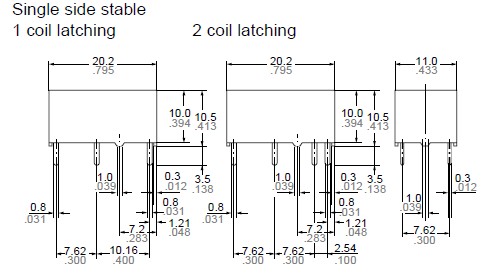

Diagrams
