Product Summary

The G5LE-14-5V is a Cubic, Single-pole 10-A Power Relay.

Parametrics

G5LE-14-5V absolute maximum ratings: (1)Rated voltage: 3V, 5V, 6V, 9V, 12V, 24V, 48V; (2)Rated current: 136.4mA, 79.4mA, 66.7mA, 45mA, 33.3mA, 16.7mA, 8.33mA; (3)Coil resistance: 22.5W, 63W, 90W, 200W, 360W, 1440W, 5760W; (4)Must operate voltage: 75% of rated voltage (max.); (5)Must release voltage: 10% of rated voltage (min.); (6)Max. voltage: 130% of rated voltage at 70℃ (158°F), 170% of rated voltage at 23℃ (73°F); (7)Power consumption: Approx. 400mW.

Features

G5LE-14-5V features: (1)Subminiature "sugar cube" relay; (2)Contact ratings of 10A; (3)Withstands impulses of up to 4,500 V; (4)Two types of seal available: flux protection and plastic-sealed; (5)UL class-B insulation certified, UL class-F available; (6)Ideal for applications in security equipment, household electrical appliances, garage door openers, and audio equipment.

Diagrams

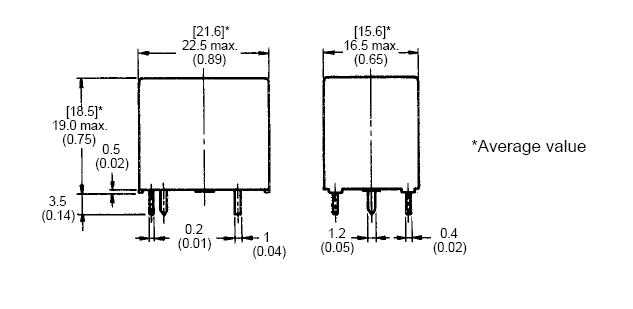

G5LE-14-5V dimension

G5LE-1 DC18
G5LE-1 DC18
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
