Product Summary

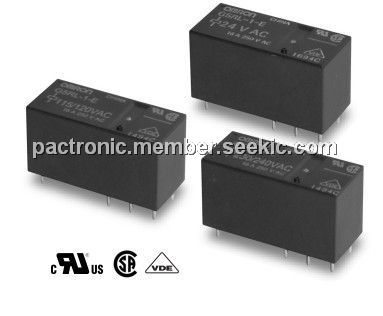

The G5V-2-H1-5V is a miniature relay for signal circuit.

Parametrics

G5V-2-H1-5V absolute maximum ratings: (1)Contact resistance: 50 mW max.; (2)Operate time: 7 ms max.; (3)Release time: 3 ms max; (4)Ambient temperature Operating: -25℃ to 65℃ (with no icing) Operating: -25℃ to 70℃; (5)Ambient humidity Operating: 5% to 85%; (6)Weight Approx: 5 g.

Features

G5V-2-H1-5V features: (1)Wide switching power of 10 μA to 2 A; (2)High dielectric strength coil-contacts:1,000 VAC; opecontacts: 750 VAC; (3)Conforms to FCC Part 68 requirements; (4)Ag + Au clad bifurcated crossbar contacts and fully sealed for high contact reliability; (5)New 150mW relays with high-sensitivity.

Diagrams

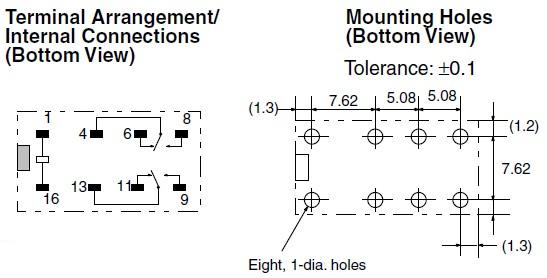

G5V-2-H1-5V Bottom View

G5V-1-2 DC12
G5V-1-2 DC12
