Product Summary

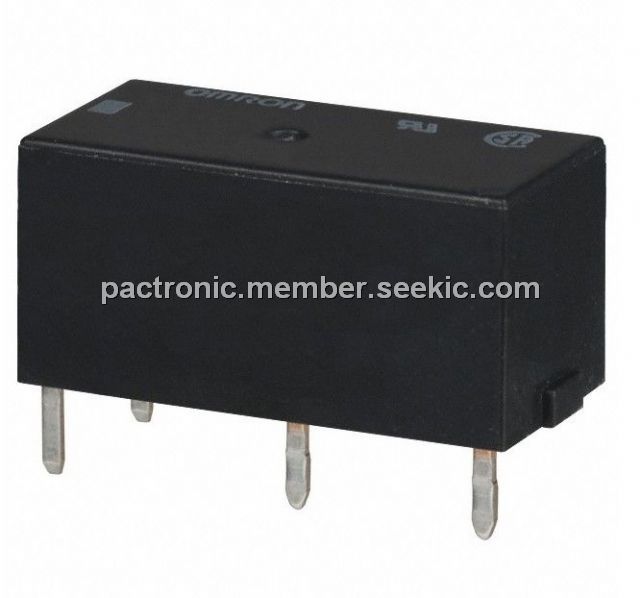

The G6B-1114P-US-DC24V is a subminiature relay that switches up to 5 A.

Parametrics

G6B-1114P-US-DC24V absolute maximum ratings: (1)Rated load: 8 A at 250 VAC; 8 A at 30 VDC; (2)Contact material: Ag Alloy (Cd free); (3)Rated carry current: 8 A; (4)Max. switching voltage: 380 VAC, 125 VDC; (5)Max. switching current: 8 A; (6)Max. switching capacity: 2,000 VA, 150 W; (7)Min. permissible load: 10 mA at 5 VDC.

Features

G6B-1114P-US-DC24V features: (1)Subminiature: 20 x 10 x 10 mm (L x W x H); (2)Low power consumption: 200 mW; (3)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4)Fully sealed construction; (5)Single and Dual coil latching types also available; (6)High Capacity versions available; (7)RoHS Compliant.

Diagrams

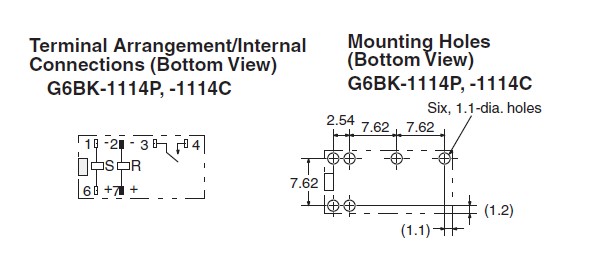

G6B-1114P-US-DC24V package diagram

G6B-1114C-FD-US DC12
G6B-1114C-FD-US DC12

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet
