Product Summary

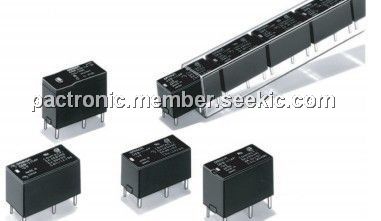

The G6B-2114P-1-US-DC5V is a subminiature relay that switches up to 5 A.

Parametrics

G6B-2114P-1-US-DC5V absolute maximum ratings: (1)Contact Form: 1 Form A (SPST-NO), 1 Form B (SPST-NC); (2)Coil Voltage: 12 VDC; (3)Coil Current: 16.7 mA; (4)Contact Rating: 5 A at 250 VAC; (5)Contact Termination: PCB; (6)Mounting Style: PCB; (7)Power Consumption: 200 mW; (8)Contact Material: Silver Alloy; (9)Coil Resistance: 480 Ohms; (10)Coil Type: Standard; (11)Series: G6B; (12)Standard Pack Qty: 100.

Features

G6B-2114P-1-US-DC5V features: (1)Subminiature: 20 x 10 x 10 mm (L x W x H); (2)Low power consumption: 200 mW; (3)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4)Fully sealed construction; (5)Single and Dual coil latching types also available; (6)High Capacity versions available; (7)RoHS Compliant.

Diagrams

G6B-2114P-1-US-DC5V Bottom View
