Product Summary

The G6S-2-5V is a Low Signal Relay.

Parametrics

G6S-2-5V absolute maximum ratings: (1) Rated load: 0.5A at 125 VAC, 2A at 30 VAC; (2) Contact material: Ag (Au clad); (3) Max. Carry current: 2A; (4) Max. Operating voltage: 250 VAC, 220 VDC; (5) Max. Operating current: 2A; (6) Max. Switching capacity: 62.5 VA, 60W; (7) Min. permissible load: 10mVDC, 10mA.

Features

G6S-2-5V features: (1)Third generation surface mount design; (2)Design is based on worldwide telecommunications, data communications, computer peripheral and office automation; (3)relay requirements; (4)High dielectric withstand voltage of 2,000 VAC between coil and contacts (standard type); (5)Meets 2.5kV Bellcore surge requirement; (6)Offers significant board space savings; (7)European version certified for EN60950/EN41003 Supplementary Insulation at 250V; (8)Available in PCB through-hole terminal configuration; (9)Tape and reel packaging option available.

Diagrams

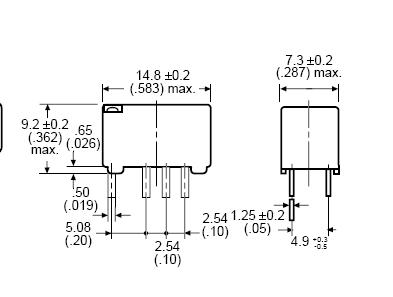

G6S-2-5V dimension

G6S-2
G6S-2
Other

Data Sheet
Negotiable
G6S-2 DC12 BY OMR
G6S-2 DC12 BY OMR

RELAY TELECOM DPDT 2A 12V
Data Sheet
0-1: $2.19
1-25: $1.97
25-50: $1.75
50-100: $1.58
100-250: $1.49
250-500: $1.31
500-1000: $1.18
G6S-2 DC24 BY OMR
G6S-2 DC24 BY OMR

RELAY TELECOM DPDT 2A 24V
Data Sheet
0-1: $2.62
1-25: $2.36
25-50: $2.09
50-100: $1.88
100-250: $1.78
250-500: $1.57
500-1000: $1.41
G6S-2 DC3
G6S-2 DC3
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 3VDC 140mW
Data Sheet
0-1: $2.34
1-25: $2.11
25-50: $1.87
50-100: $1.78
G6S-2 DC3 BY OMR
G6S-2 DC3 BY OMR

RELAY TELECOM DPDT 2A 3V
Data Sheet
0-1: $2.34
1-25: $2.11
25-50: $1.87
50-100: $1.69
100-250: $1.59
250-500: $1.40
500-1000: $1.26
G6S-2 DC4.5 BY OMR
G6S-2 DC4.5 BY OMR

RELAY TELECOM DPDT 2A 4.5V
Data Sheet
0-1: $2.15
1-25: $1.94
25-50: $1.72
50-100: $1.55
100-250: $1.46
250-500: $1.29
500-1000: $1.16
