Product Summary

The IM03GR is an IM Relay.

Parametrics

IM03GR absolute maximum ratings: (1)Working voltage ≤ 300 Vrms; (2)Mains supply voltage SMT: 250 Vrms; (3)THT: 200 Vrms; (4)Repetitive peak voltage 2500 V; (5)Pollution degree: External: 2; (6)Internal: 1; (7)Flammability classification: V-0; (8)Maximum operating temperature: 85℃.

Features

IM03GR features: (1)Telecom/signal relay (dry circuit, test access, ringing); (2)Slim line10 x 6 mm, 0.39 x 0.24 inch; (3)Low profile 5.65 mm, 0.222 inch; (4)Minimum board-space 60 mm2; (5)Switching current 2 A; (6)2 changeover contacts (2 form C / DPDT); (7)Bifurcated contacts, gold plated.

Diagrams

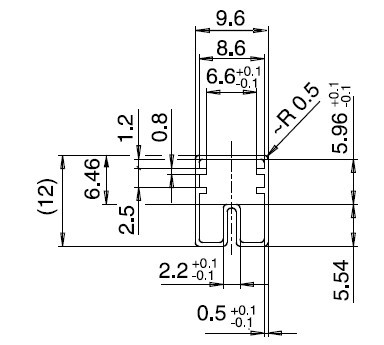

IM03GR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

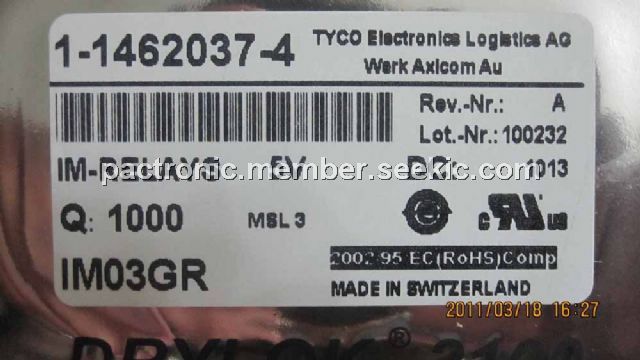

IM03GR
IM03GR
TE Connectivity / Axicom
High Frequency / RF Relays 5VDC Non-latching Single coil gullwing
Data Sheet
0-1: $1.69
1-10: $1.56
10-25: $1.46
25-50: $1.33
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IM03CGR
IM03CGR
TE Connectivity / Axicom
High Frequency / RF Relays 140mW 5V DIELEC.
Data Sheet
0-1535: $1.21
IM03DGR
IM03DGR
TE Connectivity / Axicom
High Frequency / RF Relays IM RELAY 140mW 5V
Data Sheet
0-1: $1.64
1-25: $1.46
25-50: $1.35
50-100: $1.13
IM03GR
IM03GR
TE Connectivity / Axicom
High Frequency / RF Relays 5VDC Non-latching Single coil gullwing
Data Sheet
0-1: $1.69
1-10: $1.56
10-25: $1.46
25-50: $1.33
IM03JR
IM03JR
TE Connectivity / Axicom
High Frequency / RF Relays 140 mW 5 V 10
Data Sheet
0-1: $1.69
1-10: $1.56
10-25: $1.46
25-50: $1.33
IM03NS
IM03NS
TE Connectivity / Axicom
High Frequency / RF Relays 140 MW 5 V 11
Data Sheet
0-1580: $0.91
IM03TS
IM03TS
TE Connectivity / Axicom
High Frequency / RF Relays 5VDC Non-latching Single coil
Data Sheet
0-1: $1.32
1-10: $1.24
10-25: $1.14
25-50: $1.08
